TC15-11SRWA Datasheet - Kingbright

TC15-11SRWA - DOT MATRIX DISPLAY

The Super Bright Red source color devices are made with Gallium Aluminum Arsenide Red Light Emitting Diode.

Package Dimensions& Internal Circuit Diagram Notes: 1.

All dimensions are in millimeters (inches), Tolerance is ±0.25(0.01")unless otherwise noted.

2.

The specifications, characteristics and

TC15-11SRWA Features

* z 1.5 inch matrix height. z Dot size 3.7mm. z Low current operation. z High contrast and light output. z Stackable horizontally and vertically. z Column cathode and column anode available. z Easy mounting on P.C. boards or sockets. z Multicolor available. z Mechanically rugged. z Standard : gray fac

TC15-11SRWA-Kingbright.pdf

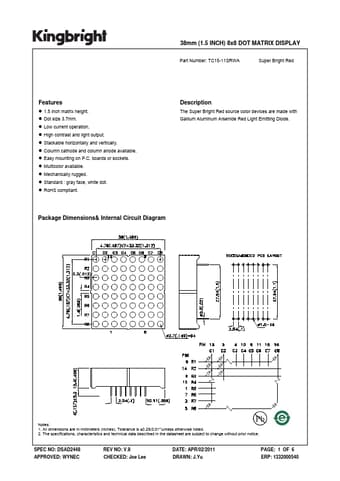

Preview of TC15-11SRWA PDF
TC15-11SRWA Datasheet Preview Page 2 TC15-11SRWA Datasheet Preview Page 3

Datasheet Details

Part number:

TC15-11SRWA

Manufacturer:

Kingbright

File Size:

253.80 KB

Description:

Dot matrix display.
