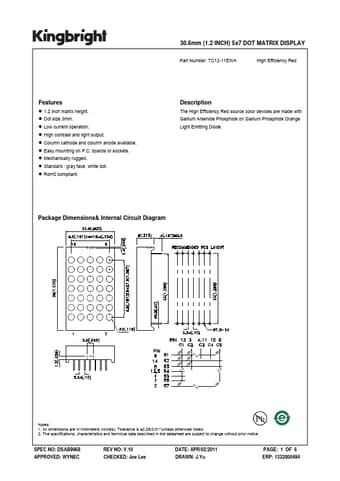

TC12-11EWA DOT MATRIX DISPLAY

The High Efficiency Red source color devices are made with Gallium Arsenide Phosphide on Gallium Phosphide Orange Light Emitting Diode. Package Dimensions& Internal Circuit Diagram Notes: 1. All dimensions are in millimeters (inches), Tolerance is ±0.25(0.01")unless otherwise noted. 2. The specifi.

TC12-11EWA Features

* z 1.2 inch matrix height. z Dot size 3mm. z Low current operation. z High contrast and light output. z Column cathode and column anode available. z Easy mounting on P.C. boards or sockets. z Mechanically rugged. z Standard : gray face, white dot. z RoHS compliant. 30.6mm (1.2 INCH) 5x7 DOT MATRIX D
