TC12.5A4V - Current Transducers

Product Overview

Topstek

📥 Download Datasheet

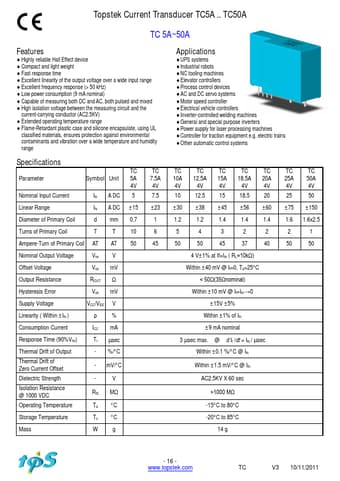

TC12.5A4V Current Transducers by Topstek - Datasheet Preview — Datasheet preview – TC12.5A4V

Datasheet Details

Part number	TC12.5A4V
Manufacturer	Topstek
File Size	323.58 KB
Description	Current Transducers
Datasheet	TC12.5A4V Datasheet
Note	This datasheet PDF includes multiple part numbers: TC12.5A4V, TC15A4V. Please refer to the document for exact specifications by model.
Additional preview pages of the TC12.5A4V datasheet.

Product details

Features

Highly reliable Hall Effect device.
Compact and light weight.
Fast response time.
Excellent linearity of the output voltage over a wide input range.
Excellent frequency response (> 50 kHz).
Low power consumption (9 mA nominal).
Capable of measuring both DC and AC, both pulsed and mixed.
High isolation voltage between the measuring circuit and the current-carrying conductor (AC2.5KV).
Extended operating temperature.
