TC1211LC - ESD Protection Device

Product Overview

CITC

📥 Download Datasheet

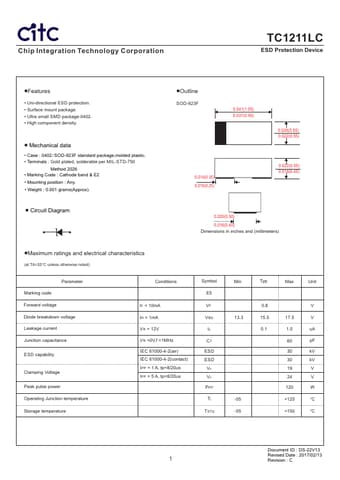

TC1211LC ESD Protection Device by CITC - Datasheet Preview — Datasheet preview – TC1211LC

Datasheet Details

Part number	TC1211LC
Manufacturer	CITC
File Size	481.55 KB
Description	ESD Protection Device
Datasheet	TC1211LC Datasheet
Additional preview pages of the TC1211LC datasheet.

Product details

Features

Uni-directional ESD protection.
Surface mount package.
Ultra small SMD package:0402.
High component density.
Mechanical data.
Case : 0402/SOD-923F standard package,molded plastic.
Terminals : Gold plated, solderable per MIL-STD-750 Method 2026.
Μarking Code : Cathode band & E2.
Mounting position : Any.
Weight : 0.001 grams(Approx).
Outline SOD-923F 0.041(1.05) 0.037(0.95) 0.026(0.65) 0.022(0.55).
