TC1219, Switched Capacitor Voltage Converters

Switched Capacitor Voltage Converters with Shutdown in SOT Packages .
The TC1219/TC1220 are CMOS “charge-pump” voltage converters in ultra-small 6-Pin SOT-23A packages.

datasheet Preview Page 1 from Datasheet4u.com

TC1219_MicrochipTechnology.pdf

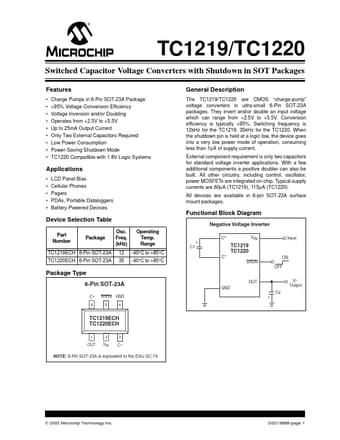

TC1219 Datasheet Preview — Preview of TC1219 PDF

Datasheet Details

Part number:

TC1219

Manufacturer:

Microchip ↗ Technology

File Size:

482.16 KB

Description:

Switched Capacitor Voltage Converters

Features

* Charge Pumps in 6-Pin SOT-23A Package >95% Voltage Conversion Efficiency Voltage Inversion and/or Doubling Operates from +2.5V to +5.5V Up to 25mA Output Current Only Two External Capacitors Required Low Power

Applications

* With a few additional components a positive doubler can also be built. All other circuitry, including control, oscillator, power MOSFETs are integrated on-chip. Typical supply currents are 60µA (TC1219), 115µA (TC1220). All devices are available in 6-pin SOT-23A surface mount packages. Application
