TC1222, TC1221 Datasheet - Microchip Technology

TC1222 High Frequency Switched Capacitor Voltage Converters

The TC1221/TC1222 are CMOS “charge-pump” voltage converters in ultra-small 6-Pin SOT-23A packages. They invert and/or double an input voltage which can range from +1.8V to +5.5V. Conversion efficiency is typically 96%. Switching frequency is 125kHz for the TC1221, 750kHz for the TC1222. When the shu.

TC1221_MicrochipTechnology.pdf

This datasheet PDF includes multiple part numbers: TC1222, TC1221. Please refer to the document for exact specifications by model.

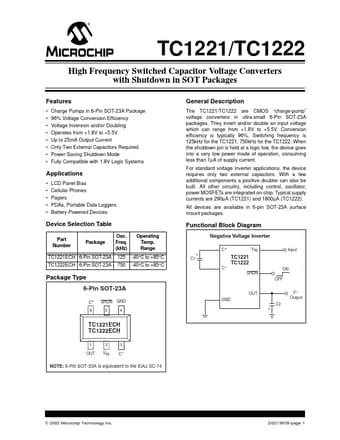

TC1222 Datasheet Preview Page 2 TC1222 Datasheet Preview Page 3

Datasheet Details

Part number:

TC1222, TC1221

Manufacturer:

Microchip ↗ Technology

File Size:

462.52 KB

Description:

High frequency switched capacitor voltage converters.

Note:

This datasheet PDF includes multiple part numbers: TC1222, TC1221.
Please refer to the document for exact specifications by model.
