TC15A4V - Current Transducers

Product Overview

Topstek

Part number	TC15A4V
Manufacturer	Topstek
File Size	323.58 KB
Description	Current Transducers
Datasheet	TC15A4V Datasheet

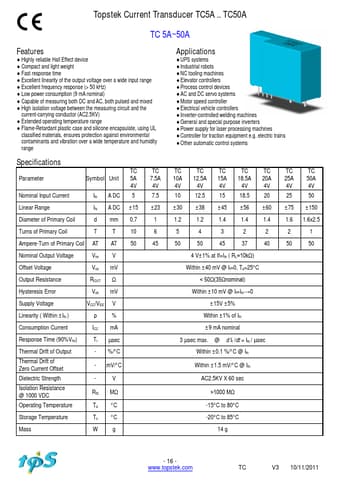

Additional preview pages of the TC15A4V datasheet.

Highly reliable Hall Effect device.
Compact and light weight.
Fast response time.
Excellent linearity of the output voltage over a wide input range.
Excellent frequency response (> 50 kHz).
Low power consumption (9 mA nominal).
Capable of measuring both DC and AC, both pulsed and mixed.
High isolation voltage between the measuring circuit and the current-carrying conductor (AC2.5KV).
Extended operating temperature.
