KHX1333C9D3B1-4G - 4GB 512M x 64-Bit DDR3-1333 CL9 240-Pin DIMM

Kingston

📥 Download Datasheet

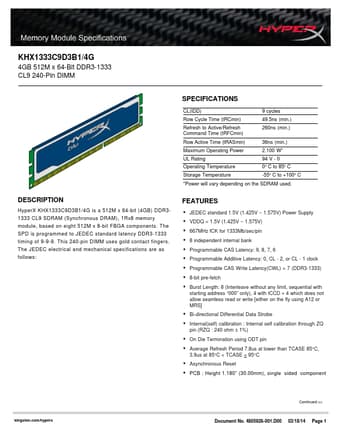

KHX1333C9D3B1-4G Datasheet Preview — Preview of KHX1333C9D3B1-4G PDF

datasheet Preview Page 2

Datasheet Details

Part number	KHX1333C9D3B1-4G
Manufacturer	Kingston
File Size	138.83 KB
Description	4GB 512M x 64-Bit DDR3-1333 CL9 240-Pin DIMM
Datasheet	KHX1333C9D3B1-4G-Kingston.pdf

KHX1333C9D3B1-4G Product details

Description

HyperX KHX1333C9D3B1/4G is a 512M x 64-bit (4GB) DDR31333 CL9 SDRAM (Synchronous DRAM), 1Rx8 memory module, based on eight 512M x 8-bit FBGA components.

Features

JEDEC standard 1.5V (1.425V ~ 1.575V) Power Supply VDDQ = 1.5V (1.425V ~ 1.575V) 667MHz fCK for 1333Mb/sec/pin 8 independent internal bank Programmable CAS Latency: 9, 8, 7, 6 Programmable Additive Latency: 0, CL - 2, or CL - 1 clock Programmable CAS Write Latency(CWL) = 7 (DDR3-1333) 8-bit pre-fetch Burst Length: 8 (Interleave without any limit, sequential with starting address “000” only), 4 with tCCD = 4.
