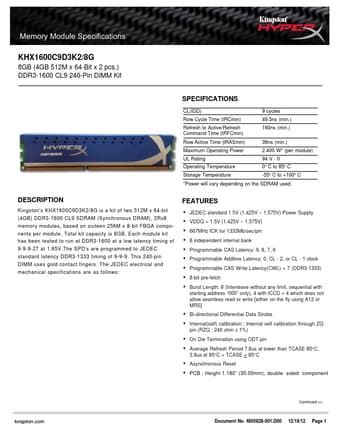

KHX1600C9D3K8G, KHX1600C9D3K2G - (KHX1600C9D3K2G / KHX1600C9D3K8G) DDR3-1600 CL9 240-Pin DIMM Kit

KHX1600C9D3K8G Datasheet Preview — This datasheet PDF includes multiple part numbers: KHX1600C9D3K8G, KHX1600C9D3K2G. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	KHX1600C9D3K8G, KHX1600C9D3K2G
Manufacturer	kingston
File Size	265.68 KB
Description	(KHX1600C9D3K2G / KHX1600C9D3K8G) DDR3-1600 CL9 240-Pin DIMM Kit
Datasheet	KHX1600C9D3K2G_kingston.pdf
Note	This datasheet PDF includes multiple part numbers: KHX1600C9D3K8G, KHX1600C9D3K2G. Please refer to the document for exact specifications by model.

KHX1600C9D3K8G Product details

Description

Kingston's KHX1600C9D3K2/8G is a kit of two 512M x 64-bit (4GB) DDR3-1600 CL9 SDRAM (Synchronous DRAM), 2Rx8 memory modules, based on sixteen 256M x 8-bit FBGA components per module.

Features

JEDEC standard 1.5V (1.425V ~ 1.575V) Power Supply VDDQ = 1.5V (1.425V ~ 1.575V) 667MHz fCK for 1333Mb/sec/pin 8 independent internal bank Programmable CAS Latency: 9, 8, 7, 6 Programmable Additive Latency: 0, CL - 2, or CL - 1 clock Programmable CAS Write Latency(CWL) = 7 (DDR3-1333) 8-bit pre-fetch Burst Length: 8 (Interleave without any limit, sequential with starting address “000” only), 4 with tCCD = 4.
