KHX1600C9D3K2G - (KHX1600C9D3K2G / KHX1600C9D3K8G) DDR3-1600 CL9 240-Pin DIMM Kit

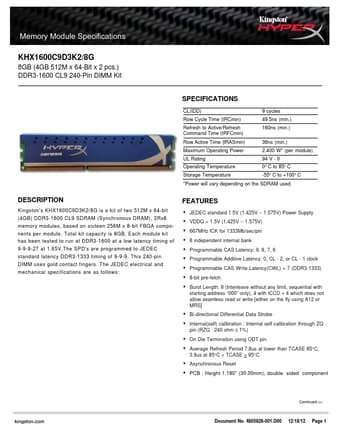

KHX1600C9D3K2G Datasheet Preview — Preview of KHX1600C9D3K2G PDF

Datasheet Details

Part number	KHX1600C9D3K2G
Manufacturer	kingston
File Size	265.68 KB
Description	(KHX1600C9D3K2G / KHX1600C9D3K8G) DDR3-1600 CL9 240-Pin DIMM Kit
Datasheet	KHX1600C9D3K2G_kingston.pdf

KHX1600C9D3K2G Product details

Description

Kingston's KHX1600C9D3K2/8G is a kit of two 512M x 64-bit (4GB) DDR3-1600 CL9 SDRAM (Synchronous DRAM), 2Rx8 memory modules, based on sixteen 256M x 8-bit FBGA components per module.

Features

JEDEC standard 1.5V (1.425V ~ 1.575V) Power Supply VDDQ = 1.5V (1.425V ~ 1.575V) 667MHz fCK for 1333Mb/sec/pin 8 independent internal bank Programmable CAS Latency: 9, 8, 7, 6 Programmable Additive Latency: 0, CL - 2, or CL - 1 clock Programmable CAS Write Latency(CWL) = 7 (DDR3-1333) 8-bit pre-fetch Burst Length: 8 (Interleave without any limit, sequential with starting address “000” only), 4 with tCCD = 4.
