KVR1333D3N9-8G

8GB 2Rx8 1G x 64-Bit PC3-10600 CL9 240-Pin DIMM

KVR1333D3N9-8G Features

* JEDEC standard 1.5V (1.425V ~1.575V) Power Supply VDDQ = 1.5V (1.425V ~ 1.575V) 667MHz fCK for 1333Mb/sec/pin 8 independent internal bank Programmable CAS Latency: 9, 8, 7, 6 Programmable Additive Latency: 0, C

KVR1333D3N9-8G General Description

This document describes ValueRAM's 1G x 64-bit (8GB) DDR3-1333 CL9 SDRAM (Synchronous DRAM), 2Rx8, memory module, based on sixteen 512M x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR3-1333 timing of 9-9-9 at 1.5V. This 240-pin DIMM uses gold contact fingers. The electri.

KVR1333D3N9-8G Datasheet (70.56 KB)

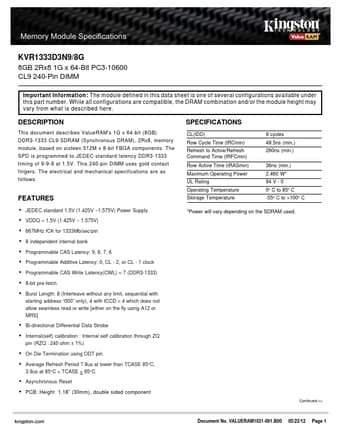

Preview of KVR1333D3N9-8G PDF

Datasheet Details

Part number:

KVR1333D3N9-8G

Manufacturer:

Kingston

File Size:

70.56 KB

Description:

8gb 2rx8 1g x 64-bit pc3-10600 cl9 240-pin dimm.
Memory Module Speciļ¬cations KVR1333D3N9/8G 8GB 2Rx8 1G x 64-Bit PC3-10600 CL9 240-Pin DIMM Important Information: The module defined in this data she.
