KVR1333D3D8R9S-4GHB

4GB 512M x 72-Bit PC3-10600 CL9 Registered w/Parity 240-Pin DIMM

KVR1333D3D8R9S-4GHB Features

* JEDEC standard 1.5V ± 0.075V Power Supply

* VDDQ = 1.5V ± 0.075V

* 667MHz fCK for 1333Mb/sec/pin

* 8 independent internal bank

* Programmable CAS Latency: 6,7,8,9,10

* Programmable Additive Latency: 0, CL - 2, or CL - 1 clock

* Program

KVR1333D3D8R9S-4GHB General Description

This document describes ValueRAM’s 512M x 72-bit (4GB) DDR3-1333MHz CL9 SDRAM (Synchronous DRAM) registered w/parity, dual-rank memory module, based on eighteen 256M x 8-bit DDR3-1333MHz FBGA components. The SPD is programmed to JEDEC standard latency 1333MHz timing of 9-9-9 at 1.5V. This 240-pin DI.

KVR1333D3D8R9S-4GHB Datasheet (266.40 KB)

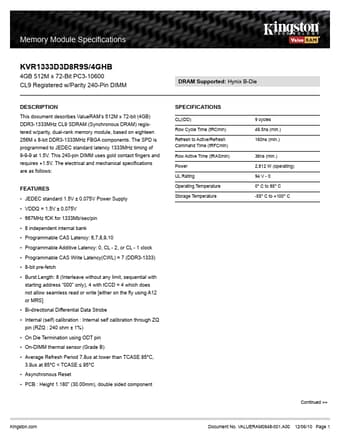

Preview of KVR1333D3D8R9S-4GHB PDF

Datasheet Details

Part number:

KVR1333D3D8R9S-4GHB

Manufacturer:

Kingston

File Size:

266.40 KB

Description:

4gb 512m x 72-bit pc3-10600 cl9 registered w/parity 240-pin dimm.
