FR303, FR301 FAST RECOVERY RECTIFIERS

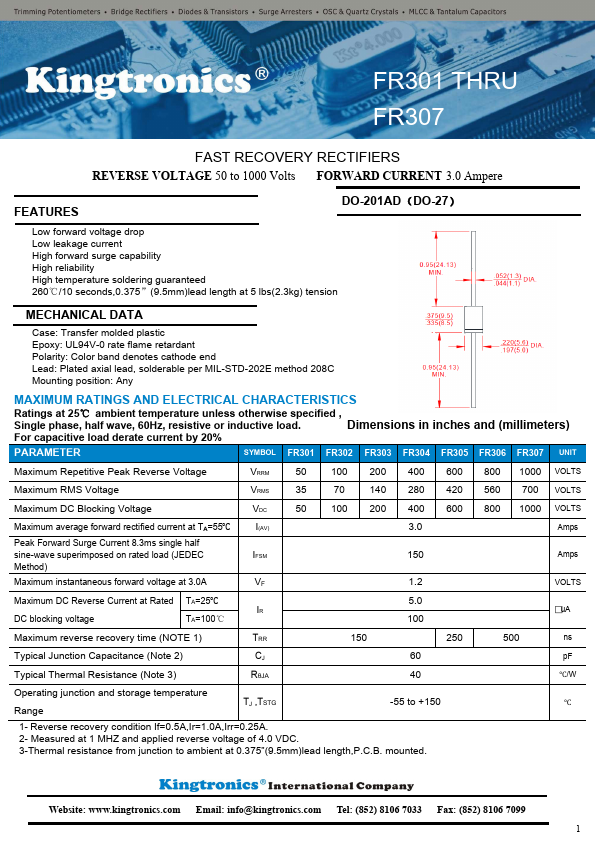

📥 Download Datasheet Datasheet Preview Page 1

Description

FR301 THRU FR307 FAST RECOVERY RECTIFIERS REVERSE VOLTAGE 50 to 1000 Volts FORWARD CURRENT 3.0 Ampere .

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: FR303, FR301. Please refer to the document for exact specifications by model.

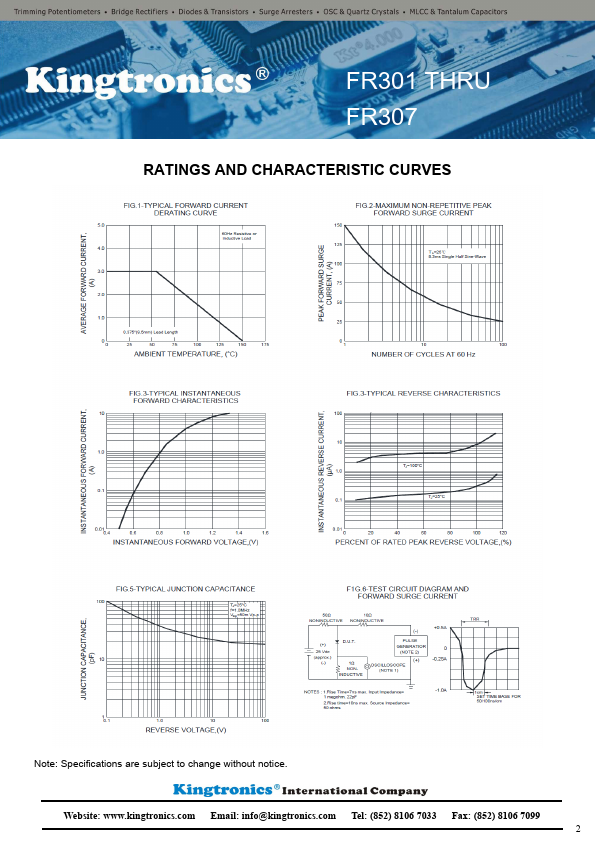

datasheet Preview Page 2

Datasheet Specifications

Part number
FR303, FR301
Manufacturer
Kingtronics
File Size
512.66 KB
Datasheet
FR301-Kingtronics.pdf
Description
FAST RECOVERY RECTIFIERS
Note
This datasheet PDF includes multiple part numbers: FR303, FR301.
Please refer to the document for exact specifications by model.

Features

* DO-201AD（DO-27） Low forward voltage drop Low leakage current High forward surge capability High reliability High temperature soldering guaranteed 260℃/10 seconds,0.375”(9.5mm)lead length at 5 lbs(2.3kg) tension MECHANICAL DATA Case: Transfer molded plastic Epoxy: UL94V-0 rate flame retardant Pol
