GS2J, GS2A SURFACE MOUNT GLASS PASSIVATED RECTIFIER

GS2J Description

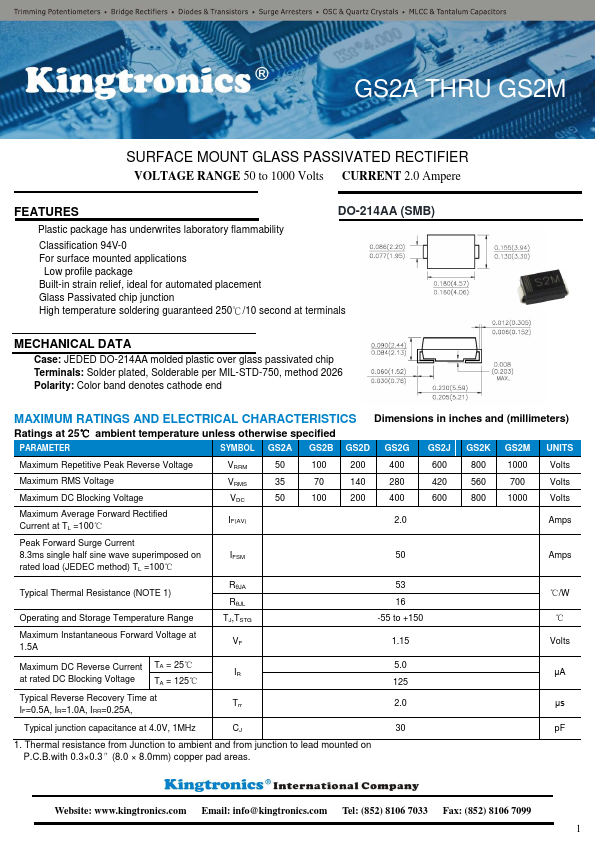

GS2A THRU GS2M SURFACE MOUNT GLASS PASSIVATED RECTIFIER VOLTAGE RANGE 50 to 1000 Volts CURRENT 2.0 Ampere .

GS2J Applications

* Low profile package Built-in strain relief, ideal for automated placement Glass Passivated chip junction High temperature soldering guaranteed 250℃/10 second at terminals MECHANICAL DATA Case: JEDED DO-214AA molded plastic over glass passivated chip Terminals: Solder plated, Solderable per MIL-STD-

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: GS2J, GS2A. Please refer to the document for exact specifications by model.

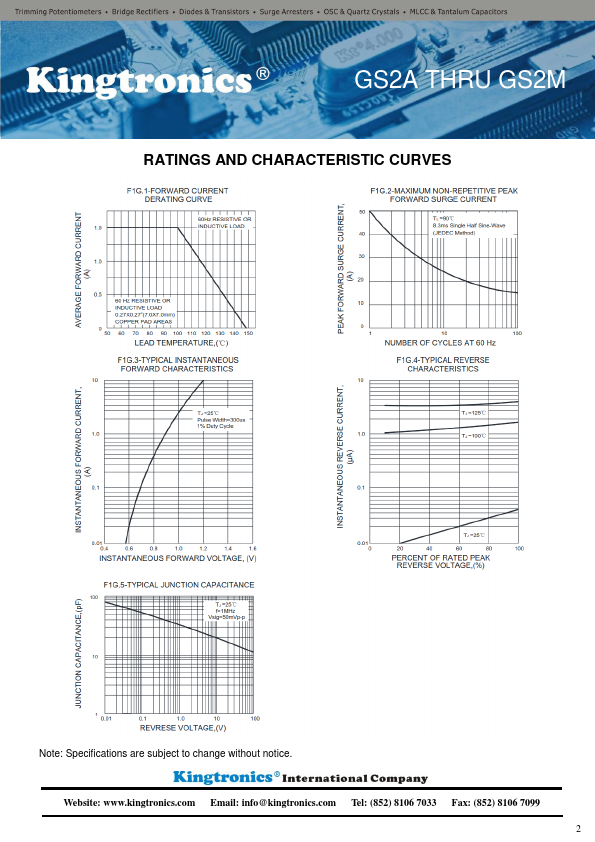

datasheet Preview Page 2

Datasheet Details

Part number
GS2J, GS2A
Manufacturer
Kingtronics
File Size
385.03 KB
Datasheet
GS2A-kingtronics.pdf
Description
SURFACE MOUNT GLASS PASSIVATED RECTIFIER
Note
This datasheet PDF includes multiple part numbers: GS2J, GS2A.
Please refer to the document for exact specifications by model.
