KPC714 Datasheet - Kodenshi

Photocoupler

KPC714 Features

* Small Package Size

* Collector-Emitter Voltage : Min.35V

* Current Transfer Ratio : 50% Min.(at IF= 5mA)

* Electrical Isolation Voltage : AC2500Vrms

* UL Recognized File No. E107486 APPLICATIONS

* AC Signal Input

* Interface between two circ

KPC714 Datasheet (151.59 KB)

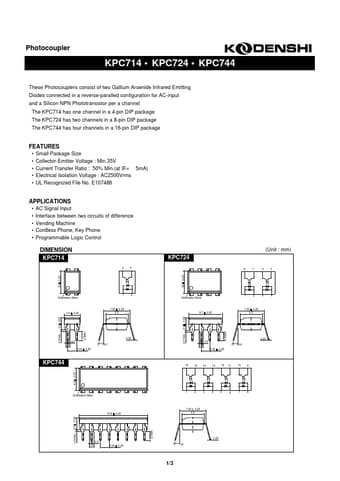

Preview of KPC714 PDF

Datasheet Details

Part number:

KPC714

Manufacturer:

Kodenshi

File Size:

151.59 KB

Description:

Photocoupler.
Photocoupler KPC714 KPC724 KPC744 These Photocouplers consist of two Gallium Arsenide Infrared Emitting Diodes connected in a re.
