Description

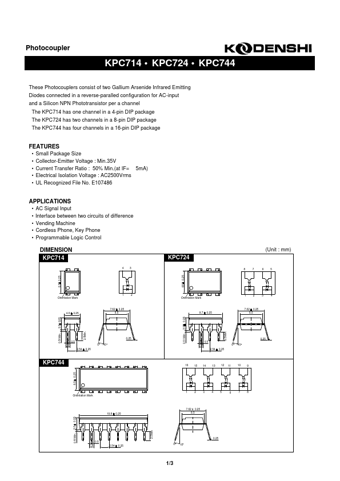

Photocoupler KPC714 * KPC724 * KPC744 These Photocouplers consist of two Gallium Arsenide Infrared Emitting Diodes connected in a re.
Features
* Small Package Size
* Collector-Emitter Voltage : Min.35V
* Current Transfer Ratio : 50% Min. (at IF= 5mA)
* Electrical Isolation Voltage : AC2500Vrms
Applications
* AC Signal Input
* Interface between two circuits of difference
* Vending Machine
* Cordless Phone, Key Phone
* Programmable Logic Control
DIMENSION KPC714
43
KPC724
(Unit : mm)
87
65
6.5 0.25
6.5 0.25
Orientation Mark 4.6 0.25
12
7.62 0.25 6.5
0.51M
