KPC744, KPC714, Photocoupler

Photocoupler KPC714 * KPC724 * KPC744 These Photocouplers consist of two Gallium Arsenide Infrared Emitting Diodes connected in a re.

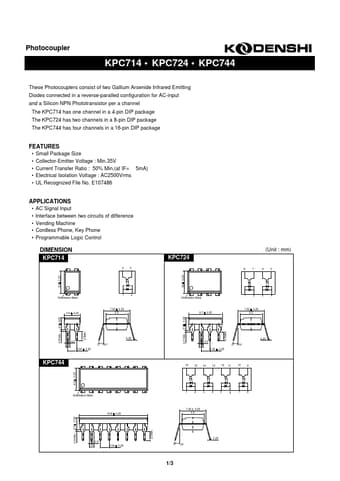

datasheet Preview Page 1 from Datasheet4u.com

KPC714-Kodenshi.pdf

KPC744 Datasheet Preview — This datasheet PDF includes multiple part numbers: KPC744, KPC714. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

KPC744, KPC714

Manufacturer:

Kodenshi

File Size:

151.59 KB

Description:

Photocoupler

Note:

This datasheet PDF includes multiple part numbers: KPC744, KPC714.
Please refer to the document for exact specifications by model.

Features

* Small Package Size
* Collector-Emitter Voltage : Min.35V
* Current Transfer Ratio : 50% Min. (at IF= 5mA)
* Electrical Isolation Voltage : AC2500Vrms

Applications

* AC Signal Input
* Interface between two circuits of difference
* Vending Machine
* Cordless Phone, Key Phone
* Programmable Logic Control DIMENSION KPC714 43 KPC724 (Unit : mm) 87 65 6.5 0.25 6.5 0.25 Orientation Mark 4.6 0.25 12 7.62 0.25 6.5 0.51M
