KSA240D2R-12T

Solid State Relay

KSA240D2R-12T General Description

The KSA series is printed board mounted AC output solid state relay.Small volume with high surge current ability.Sutible for control electromagnetic valve,electric machine,filament lamp etc.The control input voltage is 5VDC,12VDC and 24VDC.Opto-isolation bettween input and output,output is AC output.

KSA240D2R-12T Datasheet (125.18 KB)

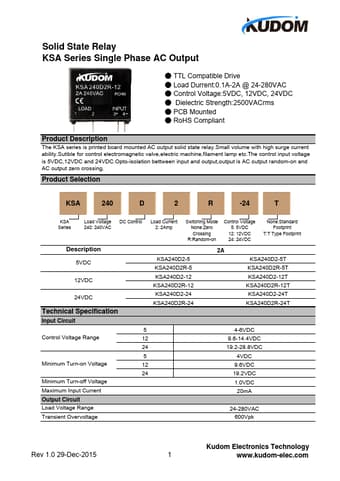

Preview of KSA240D2R-12T PDF

Datasheet Details

Part number:

KSA240D2R-12T

Manufacturer:

Kudom

File Size:

125.18 KB

Description:

Solid state relay.
Solid State Relay KSA Series Single Phase AC Output
* TTL Compatible Drive
* Load Durrent:0.1A-2A @ 24-280VAC
* Control Voltage:5VDC, 12VD.
