KSA2015CAT - Single N-Channel Advanced Power MOSFET

The KSA2015CAT by Kwansemi is a Single N-Channel Advanced Power MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

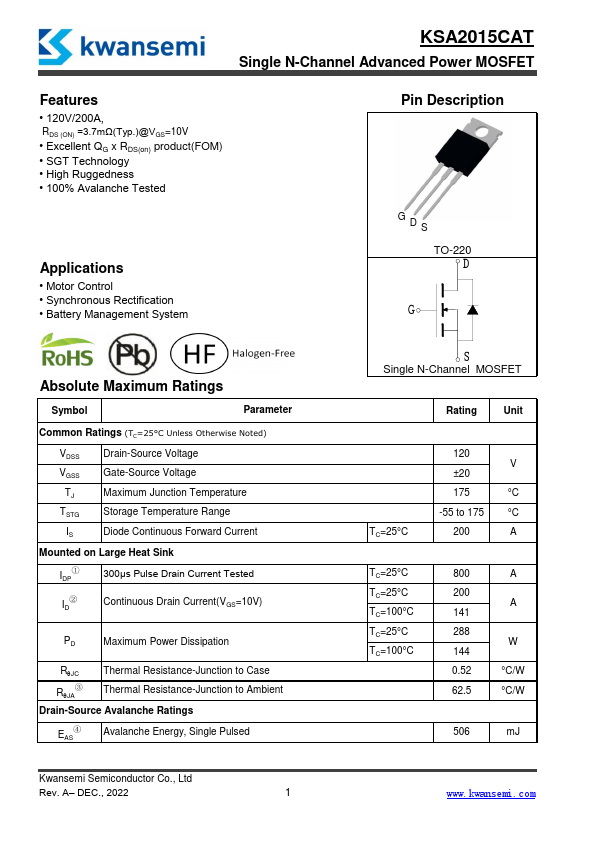

KSA2015CAT Single N-Channel Advanced Power MOSFET by Kwansemi - Datasheet Preview — Official preview page of the **KSA2015CAT** Single N-Channel Advanced Power MOSFET datasheet (Kwansemi).

Datasheet Details

Part number	KSA2015CAT
Manufacturer	Kwansemi
File Size	938.08 KB
Description	Single N-Channel Advanced Power MOSFET
Datasheet	KSA2015CAT-Kwansemi.pdf

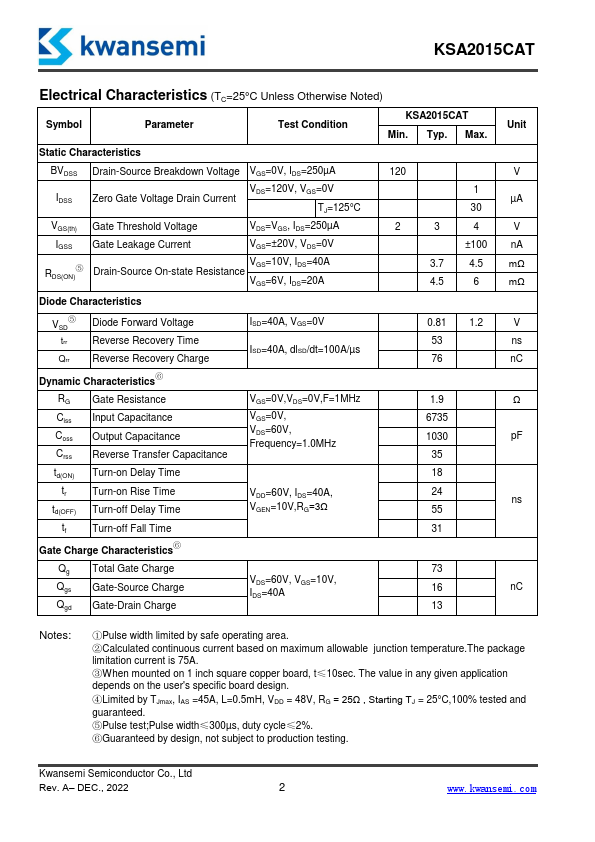

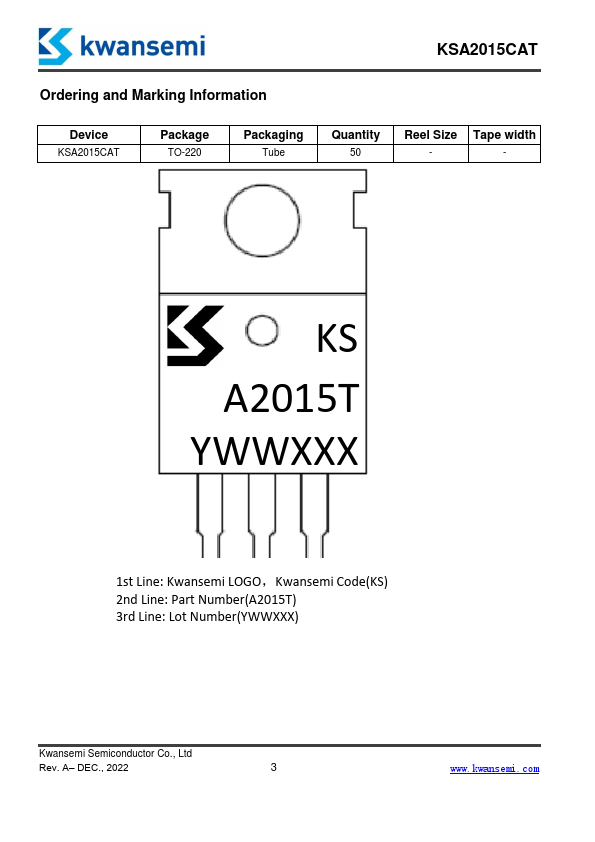

Additional preview pages of the KSA2015CAT datasheet.

KSA2015CAT Product details

Description

GDS TO-220 D G Absolute Maximum Ratings Symbol Parameter Common Ratings (TC=25°C Unless Otherwise Noted) VDSS Drain-Source Voltage VGSS Gate-Source Voltage TJ Maximum Junction Temperature TSTG Storage Temperature Range IS Diode Continuous Forward Current Mounted on Large Heat Sink IDP① 300μs Pulse Drain Current Tested ID② Continuous Drain Current(VGS=10V) PD Maximum Power Dissipation RqJC ③ RqJA Thermal Resistance-Junction to Case Thermal Resistance-Junction to Ambient Drai

Features

120V/200A, RDS (ON) =3.7mΩ(Typ. )@VGS=10V.
Excellent QG x RDS(on) product(FOM).
SGT Technology.
High Ruggedness.
100% Avalanche Tested.
