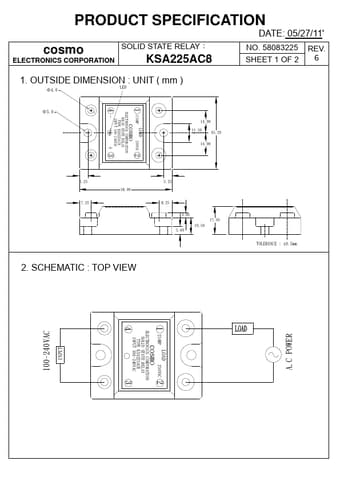

PRODUCT SPECIFICATION DATE: 05/27/11' cosmo SOLID STATE RELAY： ELECTRONICS CORPORATION KSA225AC8 NO. 58083225 REV. SHEET 1 OF 2 6 1. OUTSIDE DIMENSION : UNIT ( mm ) Φ4.0 LED 1 25AMP Φ5.0 TYPE KSA225AC8 cosmo LOAD 14.00 11.50 45.20 14.00 ELECTRONICS CORPORATION SOLID STATE RELAY INPUT 100-240VAC 4- + 3 2250VAC 5.25 7.25 58.00 5.25 8.25 3.00 5.00 10.50 17.50 2. SCHEMATIC : TOP VIEW TOLERANCE : ±0.5mm 100-240VAC INPUT A.C POWER 1 25AMP LOAD cosmo ELECTRONICS CORP.
