KS2305AA - Single P-Channel Advanced Power MOSFET

KS2305AA Description

.
D G S SOT23 D G Absolute Maximum Ratings Symbol Parameter Common Ratings (TA=25°C Unless Otherwise Noted) VDSS VGSS TJ TSTG IS Drain-Source Volt.

KS2305AA Features

* -20V/-4.1A, RDS (ON) =38mΩ(Typ. )@VGS=-4.5V RDS (ON) =50mΩ(Typ. )@VGS=-2.5V
* Low RDS (ON)
* Super High Dense Cell Design

KS2305AA Applications

* Load Switch

📥 Download Datasheet

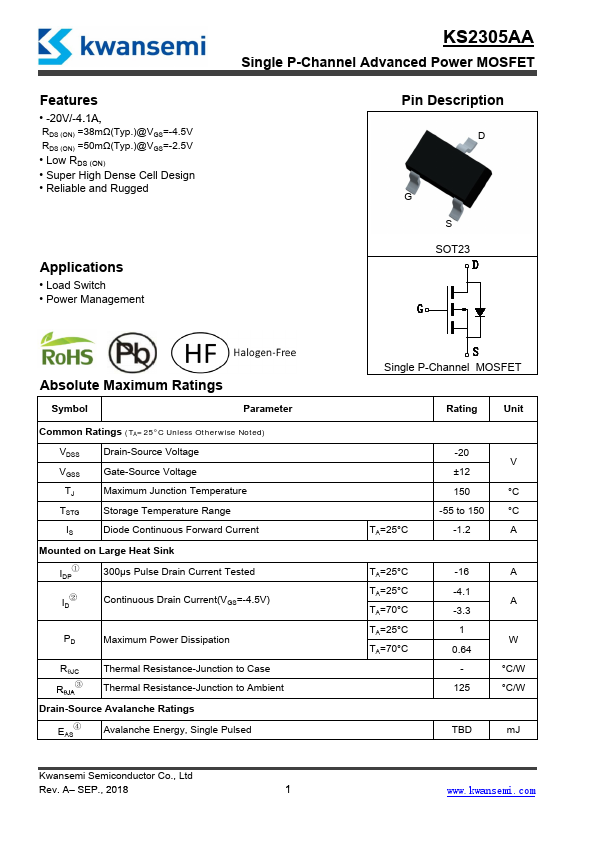

Preview of KS2305AA PDF

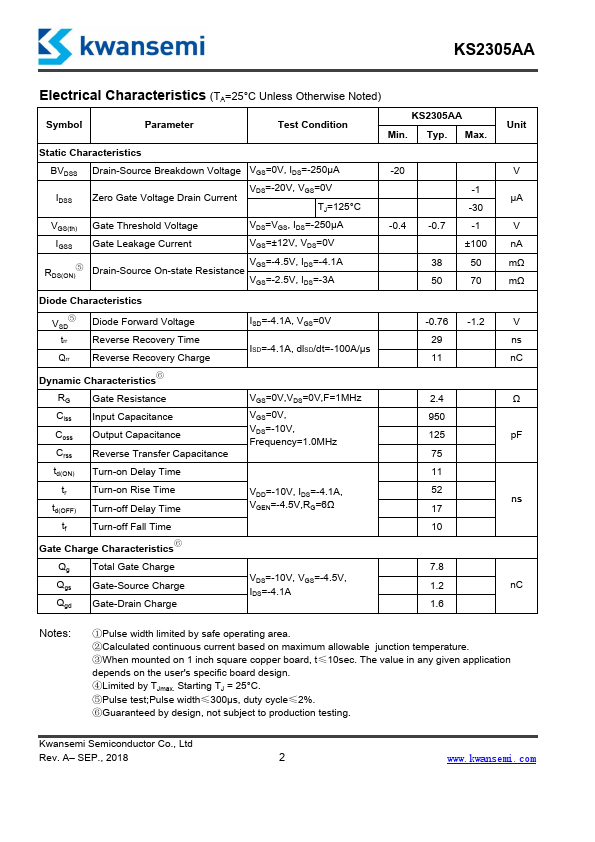

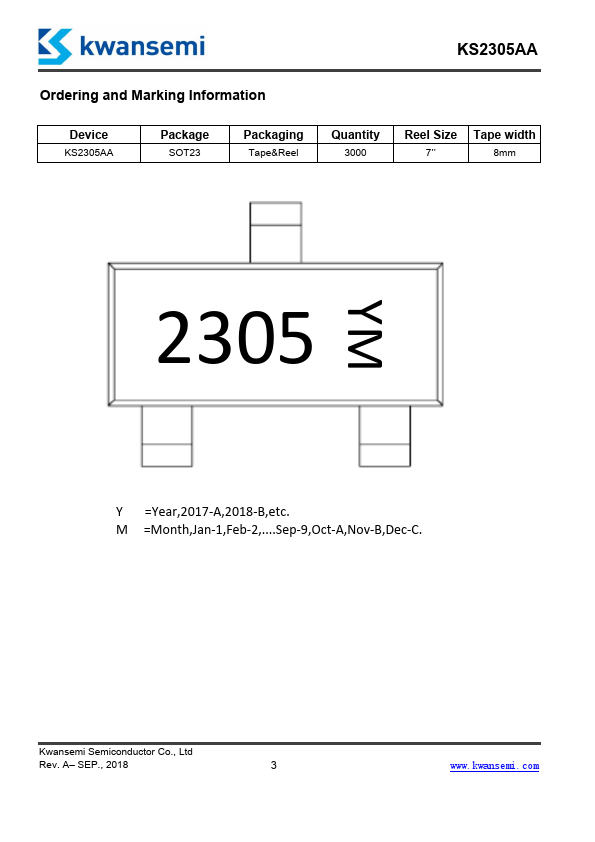

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
KS2305AA
Manufacturer
Kwansemi
File Size
560.87 KB
Datasheet
KS2305AA-Kwansemi.pdf
Description
Single P-Channel Advanced Power MOSFET
