ML620Q131B

16-bit micro controller

ML620Q131B Features

* CPU

* 16-bit RISC CPU (CPU name: nX-U16/100)

* Instruction system: 16-bit length instruction ‒ Instruction set: Transfer, arithmetic operations, comparison, logic operations, multiplication/division, bit manipulations, bit logic operations, jump, conditional jump, call ret

ML620Q131B General Description

This LSI is a high performance CMOS 16-bit microcontroller equipped with an 16-bit CPU nX-U16/100 and integrated with rich peripheral functions such as the timer, PWM, comparator, voltage level supervisor, UART, I2C, and successive approximation type A/D converter. The CPU nX-U16/100 is capable of .

ML620Q131B Datasheet (807.49 KB)

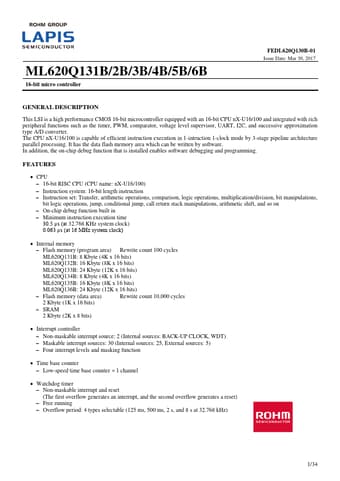

Preview of ML620Q131B PDF

Datasheet Details

Part number:

ML620Q131B

Manufacturer:

LAPIS

File Size:

807.49 KB

Description:

16-bit micro controller.
