ML620Q132B, ML620Q131B Datasheet - LAPIS

ML620Q131B-LAPIS.pdf

This datasheet PDF includes multiple part numbers: ML620Q132B, ML620Q131B. Please refer to the document for exact specifications by model.

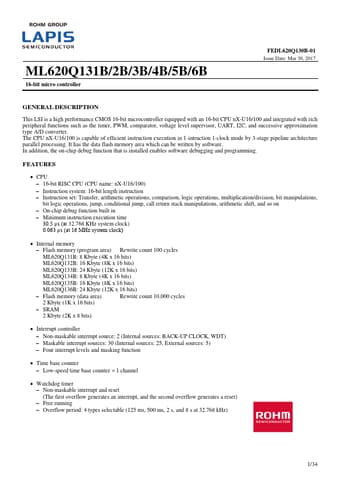

ML620Q132B Datasheet Preview Page 2 ML620Q132B Datasheet Preview Page 3

Datasheet Details

Part number:

ML620Q132B, ML620Q131B

Manufacturer:

LAPIS

File Size:

807.49 KB

Description:

16-bit micro controller.

Note:

This datasheet PDF includes multiple part numbers: ML620Q132B, ML620Q131B.
Please refer to the document for exact specifications by model.

ML620Q132B, ML620Q131B, 16-bit micro controller

This LSI is a high performance CMOS 16-bit microcontroller equipped with an 16-bit CPU nX-U16/100 and integrated with rich peripheral functions such as the timer, PWM, comparator, voltage level supervisor, UART, I2C, and successive approximation type A/D converter.

The CPU nX-U16/100 is capable of

ML620Q132B Features

* CPU

* 16-bit RISC CPU (CPU name: nX-U16/100)

* Instruction system: 16-bit length instruction ‒ Instruction set: Transfer, arithmetic operations, comparison, logic operations, multiplication/division, bit manipulations, bit logic operations, jump, conditional jump, call ret
