ML620Q132, ML620Q131 Datasheet - LAPIS

ML620Q131-LAPIS.pdf

This datasheet PDF includes multiple part numbers: ML620Q132, ML620Q131. Please refer to the document for exact specifications by model.

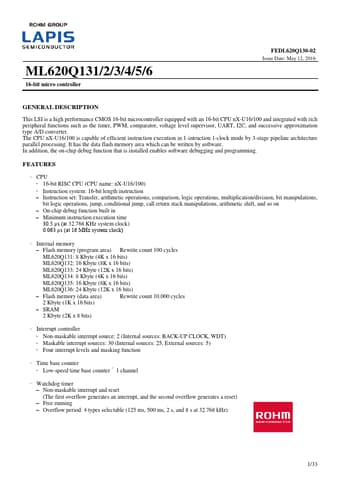

ML620Q132 Datasheet Preview Page 2 ML620Q132 Datasheet Preview Page 3

Datasheet Details

Part number:

ML620Q132, ML620Q131

Manufacturer:

LAPIS

File Size:

486.80 KB

Description:

16-bit micro controller.

Note:

This datasheet PDF includes multiple part numbers: ML620Q132, ML620Q131.
Please refer to the document for exact specifications by model.

ML620Q132, ML620Q131, 16-bit micro controller

This LSI is a high performance CMOS 16-bit microcontroller equipped with an 16-bit CPU nX-U16/100 and integrated with rich peripheral functions such as the timer, PWM, comparator, voltage level supervisor, UART, I2C, and successive approximation type A/D converter.

The CPU nX-U16/100 is capable of

ML620Q132 Features

* CPU - 16-bit RISC CPU (CPU name: nX-U16/100) - Instruction system: 16-bit length instruction ‒ Instruction set: Transfer, arithmetic operations, comparison, logic operations, multiplication/division, bit manipulations, bit logic operations, jump, conditional jump, call return stack manipulati
