ML7344E, ML7344C Datasheet - LAPIS

ML7344E Sub-GHz(160MHz to 510MHz) band short range wireless transceiver IC

ML7344C/E/J Sub-GHz(160MHz to 510MHz) band short range wireless transceiver IC FEDL7344C/E/J-05 Issue Date: Jan 20, 2015 Overview ML7344C/E/J is a narrow band sub-GHz IC that integrates RF part, IF part, MODEM part and HOST interface part in single-chip. It supports various frequency band from 160MHz to 510MHz. ML7344C can output 100mW (20dBm) transimittion power and it suits for the smart-meter in Chinese market. ML7344E is suitable for Fmode (434MHz) or N mode (169MHz) of Wireless M-Bus.

ML7344C-LAPIS.pdf

This datasheet PDF includes multiple part numbers: ML7344E, ML7344C. Please refer to the document for exact specifications by model.

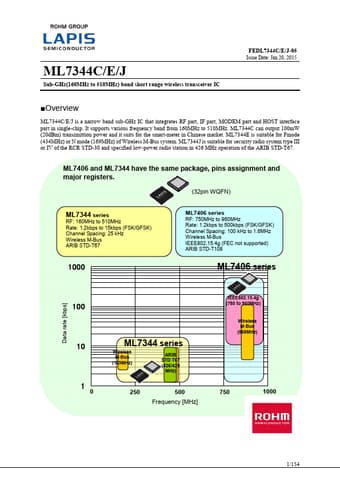

ML7344E Datasheet Preview Page 2 ML7344E Datasheet Preview Page 3

Datasheet Details

Part number:

ML7344E, ML7344C

Manufacturer:

LAPIS

File Size:

1.52 MB

Description:

Sub-ghz(160mhz to 510mhz) band short range wireless transceiver ic.

Note:

This datasheet PDF includes multiple part numbers: ML7344E, ML7344C.
Please refer to the document for exact specifications by model.
