ML7386 Datasheet - LAPIS

ML7386 Sub GHz band wireless transmitter IC

ML7386/7386B Sub GHz band wireless transmitter IC FEDL7386B-07 Issue Date: Apr. 16, 2014 Overview ML7386/ML7386B are a low power RF transmitter IC for narrowband system. It includes RF part, MOD part and HOST interface part in single-chip. It supports various frequency band from 200 MHz to 972 MHz. It is possible to use as wireless alarm and security systems, low power telemetory and industrial remote control systems. ML7386 supports only 10mW mode. ML7386B supports both 10mW and 1mW mod.

ML7386 Features

* Support 200 MHz to 972 MHz operation. (

* 1)

* Support narrow band systems with channel spacing of 12.5 or 25 kHz

* High accurate modulation implemented by direct modulation scheme using fractional-N PLL

* Multiple modulation scheme : 2-FSK/MSK

* Data

ML7386 Datasheet (420.06 KB)

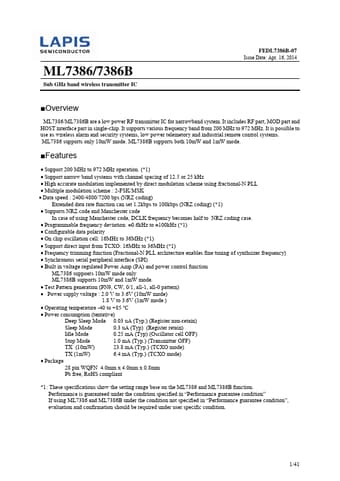

Preview of ML7386 PDF
ML7386 Datasheet Preview Page 2 ML7386 Datasheet Preview Page 3

Datasheet Details

Part number:

ML7386

Manufacturer:

LAPIS

File Size:

420.06 KB

Description:

Sub ghz band wireless transmitter ic.
