ML9092-02 LCD Driver

The ML9092-01/02/03/04 are LCD drivers that have internal RAM and a key scan function. They are best suited for car audio displays. Since 1-bit data of the display data RAM corresponds to the light-on or light-off of 1-dot of the LCD panel (a bit map system), a flexible display is possible. A graphi.

ML9092-02 Features

* Logic voltage : 4.5 to 5.5 V

* LCD drive voltage : 4.5 to 16.5 V (positive voltage)

* Segment output : 56 outputs for ML9092-01; 60 outputs for ML9092-02/03/04

* Common output : 10 outputs

* Built-in bit-mapped RAM : 60  10 = 600 bits (for ML9092-01 only: 56  10 = 56

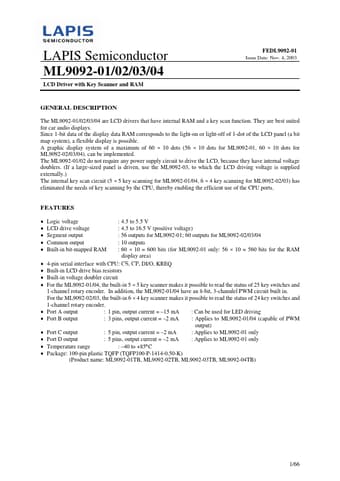

ML9092-02 Datasheet (431.49 KB)
