ML9092-03, ML9092-01 - LCD Driver

ML9092-03 Description

LAPIS Semiconductor ML9092-01/02/03/04 LCD Driver with Key Scanner and RAM FEDL9092-01 Issue Date: Nov.4, 2003 GENERAL .
The ML9092-01/02/03/04 are LCD drivers that have internal RAM and a key scan function.

ML9092-03 Features

* Logic voltage : 4.5 to 5.5 V
* LCD drive voltage : 4.5 to 16.5 V (positive voltage)
* Segment output : 56 outputs for ML9092-01; 60 outputs for ML9092-02/03/04
* Common output : 10 outputs
* Built-in bit-mapped RAM : 60  10 = 600 bits (for ML9092-01 only: 56  10 = 56

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: ML9092-03, ML9092-01. Please refer to the document for exact specifications by model.

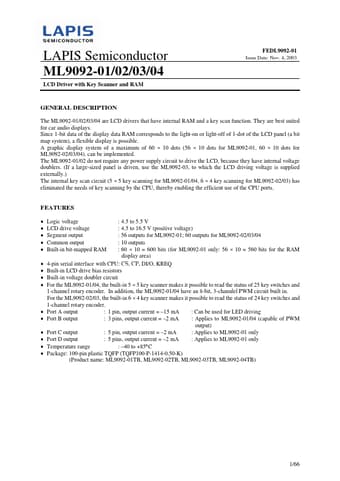

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ML9092-03, ML9092-01
Manufacturer
LAPIS
File Size
431.49 KB
Datasheet
ML9092-01-LAPIS.pdf
Description
LCD Driver
Note
This datasheet PDF includes multiple part numbers: ML9092-03, ML9092-01.
Please refer to the document for exact specifications by model.
