ML9098B

Clock IC

ML9098B Features

* 24-hour or 12-hour system

* Power supplies ranging from 3.0 to 5.5V

* Designed for 1/2-duty or static LCDs

* 4.194304MHz (crystal oscillation)

* Package: 48-pin plasticTQFP (TQFP48-P-0707-0.50-K) 1/15 Time adjustment Segment drivers BLOCK DIAGRAM VDD Xin

ML9098B Datasheet (158.51 KB)

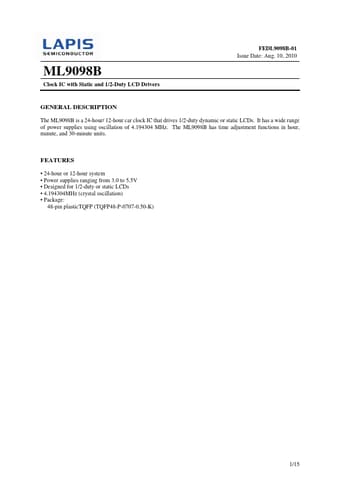

Preview of ML9098B PDF

Datasheet Details

Part number:

ML9098B

Manufacturer:

LAPIS

File Size:

158.51 KB

Description:

Clock ic.
