MSM9563 - IC for FM Multiplex Data Demodulation

MSM9563 Description

MSM9563 IC for FM Multiplex Data Demodulation FEDL9563-03 Issue Date: Nov.7, 2011 GENERAL .
The MSM9563 is an IC which demodulates FM character multiplex signals in the DARC (Data Radio Channel). 1 format to acquire digital data.

MSM9563 Features

* Built-in two receive channels including main channel and sub-channel (one of two FM stations can be selected)
* Internal frame memory enables automatic error correction.
* Built-in bandpass filter (SCF)
* Built-in block synchronization circuit and frame synchronizat

📥 Download Datasheet

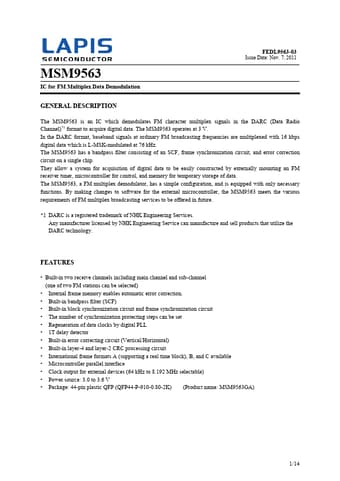

Preview of MSM9563 PDF
