MSM9004-02, MSM9004-01 - (MSM9004-01/02) 1/3 1/4 DUTY LCD DRIVER WITH 4-DOT COMMON DRIVER AND 49-DOT SEGMENT DRIVER

MSM9004-02 Description

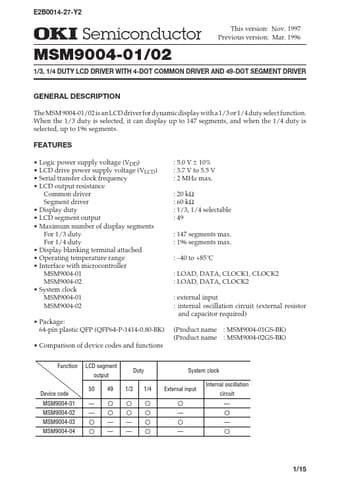

E2B0014-27-Y2 ¡ Semiconductor MSM9004-01/02 ¡ Semiconductor This version: Nov.1997 MSM9004-01/02 Previous version: Mar.1996 1/3, 1/4 DUTY LCD DRI.
The MSM 9004-01/02 is an LCD driver for dynamic display with a 1/3 or 1/4 duty select function.

MSM9004-02 Features

* Logic power supply voltage (VDD)
* LCD drive power supply voltage (VLCD)
* Serial transfer clock frequency
* LCD output resistance Common driver Segment driver
* Display duty
* LCD segment output
* Maximum number of display segments For 1/3 d

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MSM9004-02, MSM9004-01. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MSM9004-02, MSM9004-01
Manufacturer
OKI electronic componets
File Size
117.98 KB
Datasheet
MSM9004-01_OKIelectroniccomponets.pdf
Description
(MSM9004-01/02) 1/3 1/4 DUTY LCD DRIVER WITH 4-DOT COMMON DRIVER AND 49-DOT SEGMENT DRIVER
Note
This datasheet PDF includes multiple part numbers: MSM9004-02, MSM9004-01.
Please refer to the document for exact specifications by model.
