MSM9000B-xx Datasheet, Controller, OKI electronic componets

MSM9000B-xx Features

  • Controller
  • Logic voltage(VDD): 2.5 to 3.3 V
  • LCD driving voltage(VBI) : 3.0 to 5.5 V
  • Low current consumption: 35 mA max.(operating)
  • Switchable between 8-bit

PDF File Details

Part number:

MSM9000B-xx

Manufacturer:

OKI electronic componets

File Size:

223.79kb

Download:

📄 Datasheet

Description:

Dot matrix lcd controller. The MSM9000B-xx is a dot-matrix LCD control driver which has functions of displaying 12 (5 x 7 dots) characters (2 lines) and 120-dot

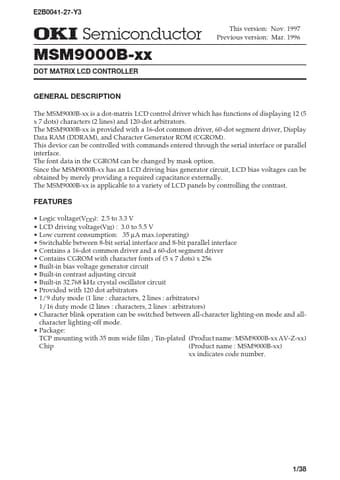

Datasheet Preview: MSM9000B-xx 📥 Download PDF (223.79kb)
Page 2 of MSM9000B-xx Page 3 of MSM9000B-xx

MSM9000B-xx Application

  • Applications n the CS input does not select the chip. Command and display data inputs can be enabled only when the chip is selected. When the input
