Datasheet Summary

Features

RMS output.
Split core type.
5V & 10V switch selectable voltage output.
DIN mounting & Panel mounting.
Eliminates insertion loss.
Switch selectable ranges AP 50 B10 AP 100 B10 AP 200 B10 AP 400 B10 ≥ 10 kΩ +24 ±5% V DC 5 kV 18 V Load resistance Supply voltage R. m. s. voltage for AC isolation test, 50/60Hz, 1 mn Limitation voltage output Advantages.
Large aperture for cable up to Ø18mm.
High isolation between primary and.

Datasheet Details

Part number	AP400-B10
Manufacturer	LEM
File Size	56.39 KB
Description	AC Current transducer AP-B10
Datasheet	AP400-B10 Datasheet
Additional preview pages of the AP400-B10 datasheet.

📁 Similar Datasheet

AP4002H - N-CHANNEL ENHANCEMENT MODE POWER MOSFET (Advanced Power Electronics)

AP4002H-HF - N-CHANNEL ENHANCEMENT MODE POWER MOSFET (Advanced Power Electronics)

AP4002H-HF-3 - N-CHANNEL ENHANCEMENT MODE POWER MOSFET (Advanced Power Electronics)

AP4002I-HF - N-CHANNEL ENHANCEMENT MODE POWER MOSFET (Advanced Power Electronics)

AP4002J - N-CHANNEL ENHANCEMENT MODE POWER MOSFET (Advanced Power Electronics)

AP4002J-HF - N-CHANNEL ENHANCEMENT MODE POWER MOSFET (Advanced Power Electronics)

AP4002J-HF-3 - N-CHANNEL ENHANCEMENT MODE POWER MOSFET (Advanced Power Electronics)

AP4002P - N-CHANNEL ENHANCEMENT MODE POWER MOSFET (Advanced Power Electronics)

AP4002S - N-CHANNEL ENHANCEMENT MODE POWER MOSFET (Advanced Power Electronics)

AP4002T - N-CHANNEL ENHANCEMENT MODE POWER MOSFET (Advanced Power Electronics)

Full PDF Text Transcription

Click to expand full text

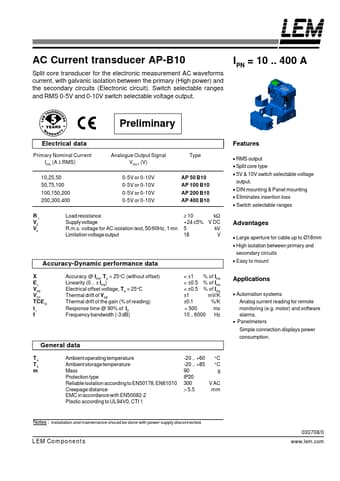

AC Current transducer AP-B10 Split core transducer for the electronic measurement AC waveforms current, with galvanic isolation between the primary (High power) and the secondary circuits (Electronic circuit). Switch selectable ranges and RMS 0-5V and 0-10V switch selectable voltage output. IPN = 10 .. 400 A Preliminary Electrical data Primary Nominal Current IPN (A.t.RMS) 10,25,50 50,75,100 100,150,200 200,300,400 RL VC Vd Analogue Output Signal VOUT (V) 0-5V or 0-10V 0-5V or 0-10V 0-5V or 0-10V 0-5V or 0-10V Type Features • RMS output • Split core type • 5V & 10V switch selectable voltage output.
