CV3-2000 - Voltage Transducer

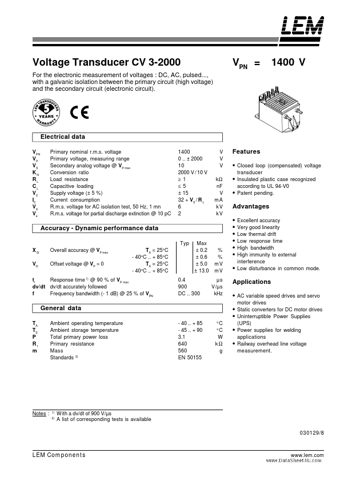

Voltage Transducer CV 3-2000 For the electronic measurement of voltages : DC, AC, pulsed, with a galvanic isolation between the primary circuit (high voltage) and the secondary circuit (electronic circuit). VPN = 1400 V Electrical data VPN VP VS KN RL CL VC IC Vd Ve Primary nominal r.m.s. voltage Primary voltage, measuring range Secondary analog voltage @ VP max Conversion ratio Load resistance Capacitive loading Supply voltage (± 5 %) Current consumption R.m.s. voltage for AC isolation test,.

CV3-2000 Features

* Closed loop (compensated) voltage transducer

* Insulated plastic case recognized according to UL 94-V0

* Patent pending. Advantages

* Excellent accuracy Very good linearity Low thermal drift Low response time High
