CV3-500 Voltage Transducer

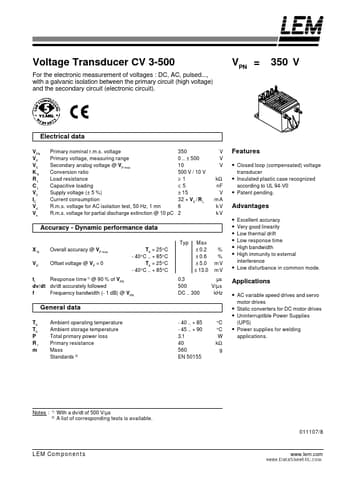

Voltage Transducer CV 3-500 For the electronic measurement of voltages : DC, AC, pulsed, with a galvanic isolation between the primary circuit (high voltage) and the secondary circuit (electronic circuit). VPN = 350 V Electrical data VPN VP VS KN RL CL VC IC Vd Ve Primary nominal r.m.s. voltage Primary voltage, measuring range Secondary analog voltage @ VP max Conversion ratio Load resistance Capacitive loading Supply voltage (± 5 %) Current consumption R.m.s. voltage for AC isolation test, 5.

CV3-500 Features

* Closed loop (compensated) voltage transducer

* Insulated plastic case recognized according to UL 94-V0

* Patent pending. Advantages

* Excellent accuracy Very good linearity Low thermal drift Low response time High

CV3-500_LEM.pdf

CV3-500 Datasheet Preview — Preview of CV3-500 PDF

Datasheet Details

Part number:

CV3-500

Manufacturer:

LEM

File Size:

42.43 KB

Description:

Voltage transducer.
