HAC200-S, HAC100-S, Current Transducer

Current Transducer HAC 100 800-S For the electronic measurement of currents: DC, AC, pulsed, with galvanic separation between the primary circuit and.

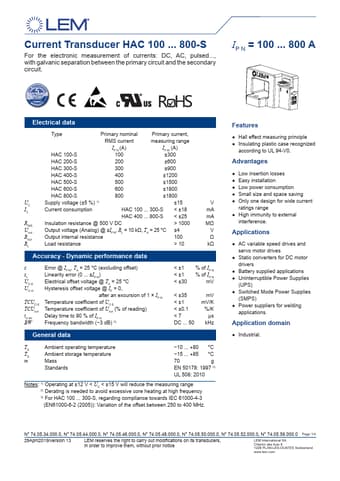

datasheet Preview Page 1 from Datasheet4u.com

HAC100-S-LEM.pdf

HAC200-S Datasheet Preview — This datasheet PDF includes multiple part numbers: HAC200-S, HAC100-S. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

HAC200-S, HAC100-S

Manufacturer:

LEM

File Size:

561.28 KB

Description:

Current Transducer

Note:

This datasheet PDF includes multiple part numbers: HAC200-S, HAC100-S.
Please refer to the document for exact specifications by model.

Features

* Hall effect measuring principle
* Insulating plastic case recognized according to UL 94-V0. Advantages
* Low insertion losses
* Easy installation
* Low power consumption UC
* Small size and space saving
* Only one design for wide

Applications

* UC
* AC variable speed drives and servo motor drives
* Static converters for DC motor drivers
* Battery supplied applications
* Uninterruptible Power Supplies (UPS)
* Switched Mode Power Supplies (SMPS)
* Power suppliers for welding application
