HAC300-S Current Transducer

Current Transducer HAC 100 800-S For the electronic measurement of currents: DC, AC, pulsed, with galvanic separation between the primary circuit and the secondary circuit. IP N = 100 800 A Electrical data Type Primary nominal Primary current, RMS current measuring range HAC 100-S IP N (A) 100 IP M (A) ±300 HAC 200-S 200 ±600 HAC 300-S 300 ±900 HAC 400-S 400 ±1200 HAC 500-S 500 ±1500 HAC 600-S 600 HAC 800-S 800 ±1800 IP ±1800 UC Supply voltage (±5 %) 1) .

HAC300-S Features

* Hall effect measuring principle

* Insulating plastic case recognized according to UL 94-V0. Advantages

* Low insertion losses

* Easy installation

* Low power consumption UC

* Small size and space saving

* Only one design for wide

HAC100-S-LEM.pdf

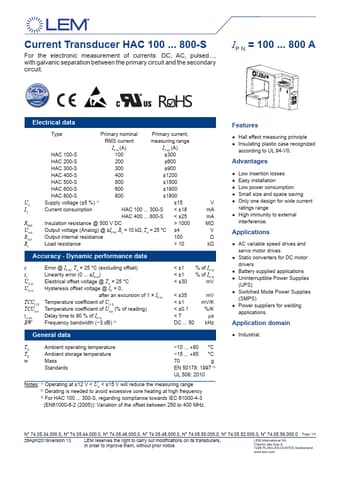

HAC300-S Datasheet Preview — This datasheet PDF includes multiple part numbers: HAC300-S, HAC100-S. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

HAC300-S, HAC100-S

Manufacturer:

LEM

File Size:

561.28 KB

Description:

Current transducer.

Note:

This datasheet PDF includes multiple part numbers: HAC300-S, HAC100-S.
Please refer to the document for exact specifications by model.
