HTB100-P Current Transducers HTB 50~400-P/SP5 and HTB 50~100-TP/SP5

Current Transducers HTB 50 .. 400-P/SP5 and HTB 50 .. 100-TP/SP5 For the electronic measurement of currents: DC, AC, pulsed, mixed, with a galvanic isolation between the primary circuit (high power) and the secondary circuit (electronic circuit). IPN = 50 .. 400 A Electrical data Primary nominal r.m.s. current IPN (A) 50 100 200 300 400 Primary current measuring range IP (A) ±150 ±300 ±500 ±600 ±600 Type HTB 50-P/SP5, HTB 50-TP/SP51) HTB 100-P/SP5, HTB 100-TP/SP51) HTB 200-P/SP5 HTB 300-P/SP5.

HTB100-P Features

* Hall effect measuring principle

* Galvanic isolation between primary

* Isolation voltage 2500V

* Low power consumption

* Primary bus bar option for 50A and 100A version for ease of connection and secondary circuit VC IC Vd R IS VOUT ROUT RL Supply voltage

HTB100-P Datasheet (63.22 KB)

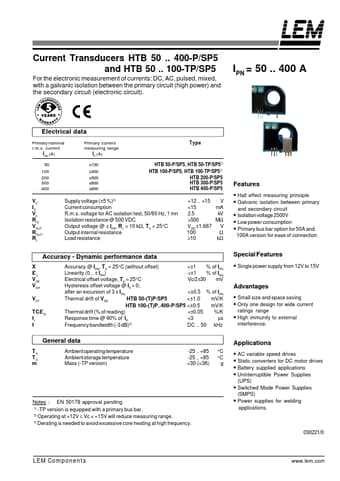

HTB100-P Datasheet Preview — Preview of HTB100-P PDF
