HTB1A60

TRIAC

HTB1A60 Features

*  Repetitive Peak Off-State Voltage : 600V/800V  R.M.S On

* State Current (IT(RMS) = 1A)  Sensitive Gate Trigger Current - 5[mA] of IGT at I, II and III Quadrants. - 12[mA] of IGT at IV Quadrant. VDRM = 600V/800V IT(RMS) = 1 A ITSM = 13 A IGT = 5mA/12mA Symbol TO-92 Applications AC power o

HTB1A60 General Description

Semihow’s sensitive TRIAC product is a glass passivated device, has a low gate trigger current, high stability in gate trigger current to variation of operating temperature and high off state voltage. It is generally suitable for power and phase control in ac application. T1 G T2 Absolute Maximum .

HTB1A60 Datasheet (405.75 KB)

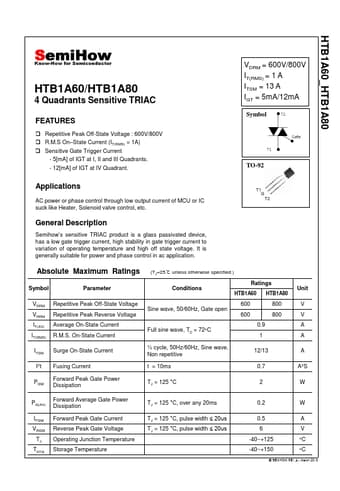

Preview of HTB1A60 PDF

Datasheet Details

Part number:

HTB1A60

Manufacturer:

SemiHow

File Size:

405.75 KB

Description:

Triac.
