LA305-S Current Transducer

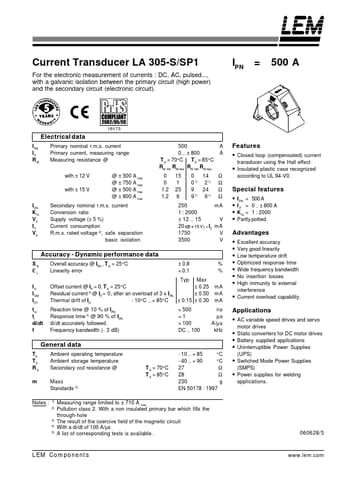

Current Transducer LA 305-S/SP1 For the electronic measurement of currents : DC, AC, pulsed, with a galvanic isolation between the primary circuit (high power) and the secondary circuit (electronic circuit). IPN = 500 A Electrical data 16173 IPN Primary nominal r.m.s. current IP Primary current, measuring range RM Measuring resistance @ with ± 12 V with ± 15 V @ ± 500 A max @ ± 750 A max @ ± 500 A max @ ± 800 A max ISN Secondary nominal r.m.s. current K N Conversion ratio VC Supply v.

LA305-S Features

* Closed loop (compensated) current transducer using the Hall effect

* Insulated plastic case recognized according to UL 94-V0. Special features

* IPN = 500 A

* IP = 0 .. ± 800 A

* K N = 1 : 2000

* Partly potted. Advantages

* Excellent accuracy

LA305-S Datasheet (61.06 KB)

LA305-S Datasheet Preview — Preview of LA305-S PDF

Datasheet Details

Part number:

LA305-S

Manufacturer:

LEM

File Size:

61.06 KB

Description:

Current transducer.
