LA30-S-DC12V-O

AUTOMOTIVE RELAY

LA30-S-DC12V-O Features

* Terminal Type Weight Contact Form/Resistance Contact Data Contact Material Contact Capacity Coil Voltage ( DC) Coil Power Consumption Coil Data Coil Specification 26.5

* 21

* 21 PCB 21 gm Approximately 1C Ag Alloy 40A / 14VDC 6 ~ 24VDC 1.6W Coil Voltage 12 VDC 24 VDC Coil Resistance (Ω) Pul

LA30-S-DC12V-O Datasheet (100.28 KB)

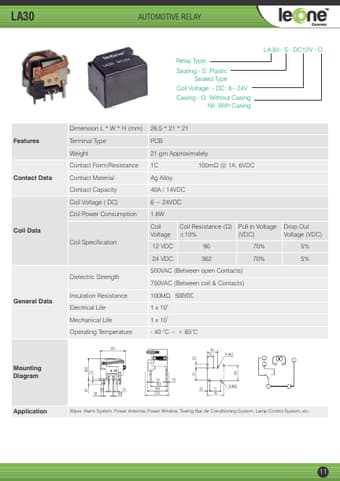

Preview of LA30-S-DC12V-O PDF

Datasheet Details

Part number:

LA30-S-DC12V-O

Manufacturer:

LEONE

File Size:

100.28 KB

Description:

Automotive relay.
LA30 AUTOMOTIVE RELAY L A 30 - S - DC12V - O Relay Type: Sealing:- S: Plastic Sealed Type Coil Voltage :- DC: 6~24V Casing:- O: Without Casing Nil: .
