LA30-S-DC24V-O, LA30-S-DC12V-O - AUTOMOTIVE RELAY

Name: LA30-S-DC24V-O
SKU: LA30-S-DC24V-O-850140

LEONE

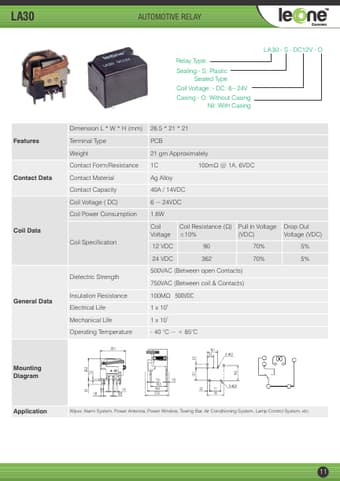

The LA30-S-DC24V-O by LEONE is a AUTOMOTIVE RELAY. Below is the official datasheet preview.

Datasheet Details

Part number	LA30-S-DC24V-O, LA30-S-DC12V-O
Manufacturer	LEONE
File Size	100.28 KB
Description	AUTOMOTIVE RELAY
Datasheet	LA30-S-DC12V-O-LEONE.pdf
Note	This datasheet PDF includes multiple part numbers: LA30-S-DC24V-O, LA30-S-DC12V-O. Please refer to the document for exact specifications by model.
Additional preview pages of the LA30-S-DC24V-O datasheet.

Terminal Type Weight Contact Form/Resistance Contact Data Contact Material Contact Capacity Coil Voltage ( DC) Coil Power Consumption Coil Data Coil Specification 26.5.
21.
21 PCB 21 gm Approximately 1C Ag Alloy 40A / 14VDC 6 ~ 24VDC 1.6W Coil Voltage 12 VDC 24 VDC Coil Resistance (Ω) Pull in Voltage ±10% (VDC) 90 362 70% 70% Drop Out Voltage (VDC) 5% 5% 100mΩ @ 1A, 6VDC Dielectric Strength Insulation Resistance Electrical Life Mechanical Life Operating Temperature 500VAC (Between o.
