LKSR50-NP, LKSR6-NP Current Transducer

LKSR50-NP Description

Current Transducer LKSR series IP N = 6, 15, 25, 50 A Ref: LKSR 6-NP, LKSR 15-NP, LKSR 25-NP, LKSR 50-NP For the electronic measurement of current:.

LKSR50-NP Features

* Closed loop multi-range current transducer
* Voltage output
* Unipolar supply voltage
* Compact design for PCB mounting. Advantages
* Very low offset drift
* Very good du/dt immunity
* CKSR footprint compatible
* Reference pin with two modes: Ref IN and Ref OUT

LKSR50-NP Applications

* AC variable speed and servo motor drives
* Static converters for DC motor drives
* Battery supplied applications
* Uninterruptible Power Supplies (UPS)
* Switched Mode Power Supplies (SMPS)
* Power supplies for welding applications
* Solar inverters. Standards
* IEC

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: LKSR50-NP, LKSR6-NP. Please refer to the document for exact specifications by model.

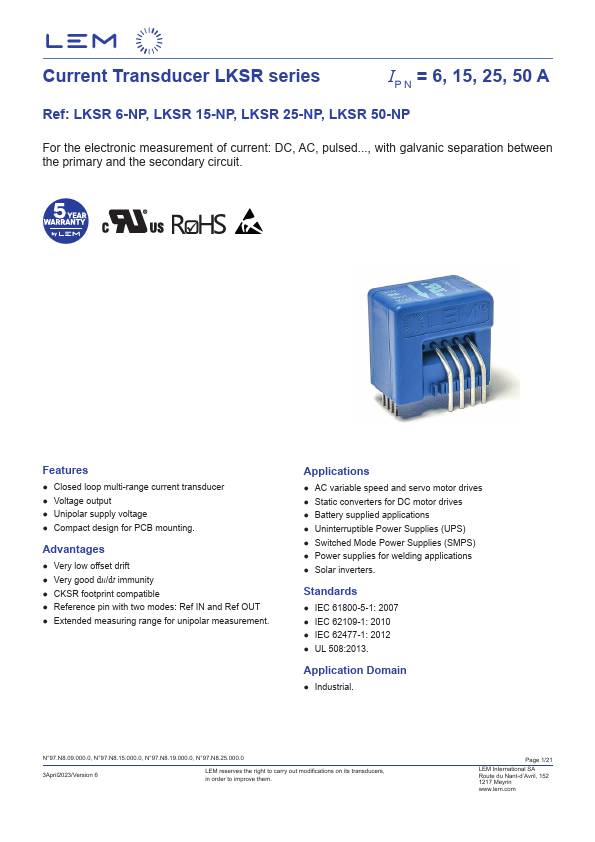

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LKSR50-NP, LKSR6-NP
Manufacturer
LEM
File Size
1.89 MB
Datasheet
LKSR6-NP-LEM.pdf
Description
Current Transducer
Note
This datasheet PDF includes multiple part numbers: LKSR50-NP, LKSR6-NP.
Please refer to the document for exact specifications by model.
