LMP02P15TSF - 150V P-Channel MOSFET

LMP02P15TSF Description

LMP02P15TSF Rev.1.0 LMP02P15TSF 150V P-Channel MOSFET .
These P-Channel enhancement mode power field effect transistors are using trench DMOS technology.

LMP02P15TSF Features

* -150V/-1A, RDS(ON)

LMP02P15TSF Applications

* Applications
* Networking
* Load Switch

📥 Download Datasheet

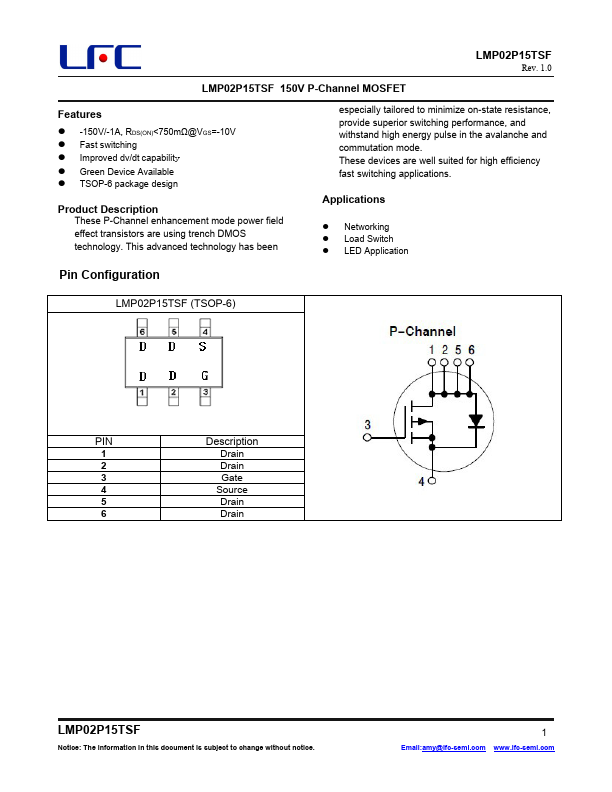

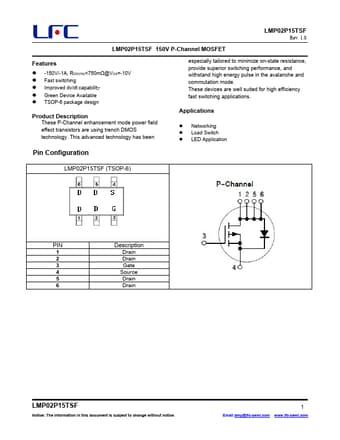

Preview of LMP02P15TSF PDF

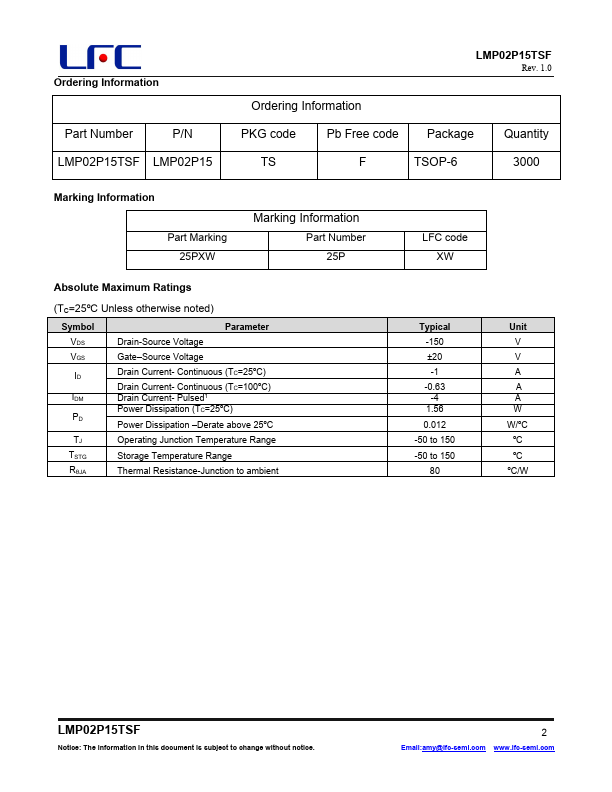

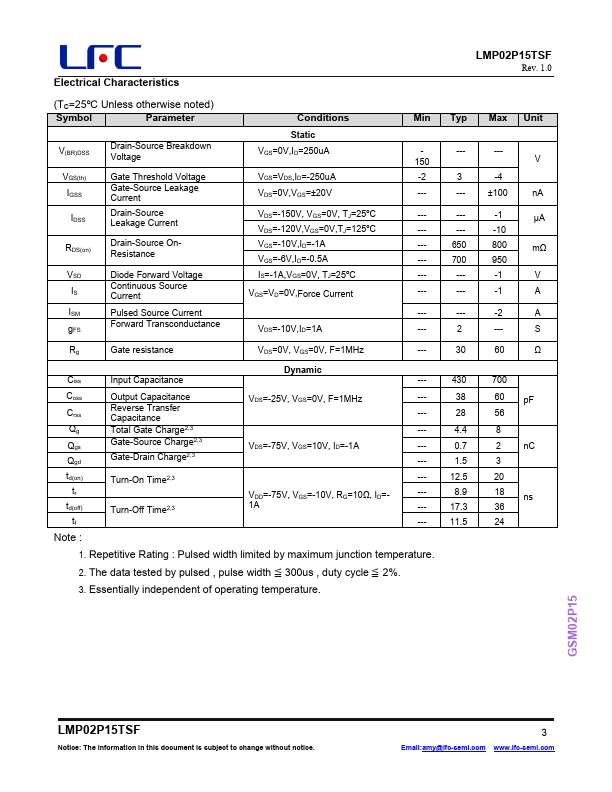

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LMP02P15TSF
Manufacturer
LFC semi
File Size
916.98 KB
Datasheet
LMP02P15TSF-LFCsemi.pdf
Description
150V P-Channel MOSFET
