LMP1073KX5F 20V P-Channel Enhancement Mode MOSFET

Description

LMP1073KX5F Rev.1.0 LMP1073KX5F 20V P-Channel Enhancement Mode MOSFETs .
LMP1073KX5F, P-Channel enhancement mode MOSFET, uses Advanced Trench Technology to provide excellent RDS(ON), low gate charge.

📥 Download Datasheet

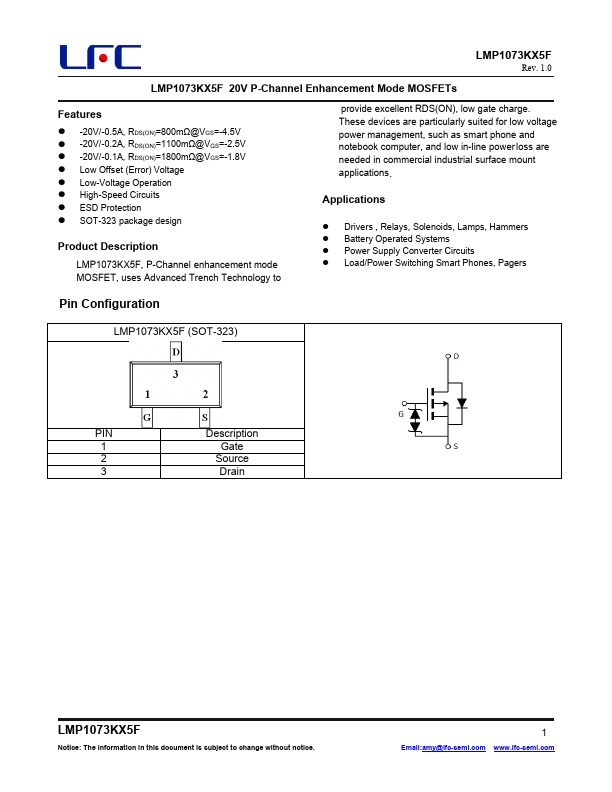

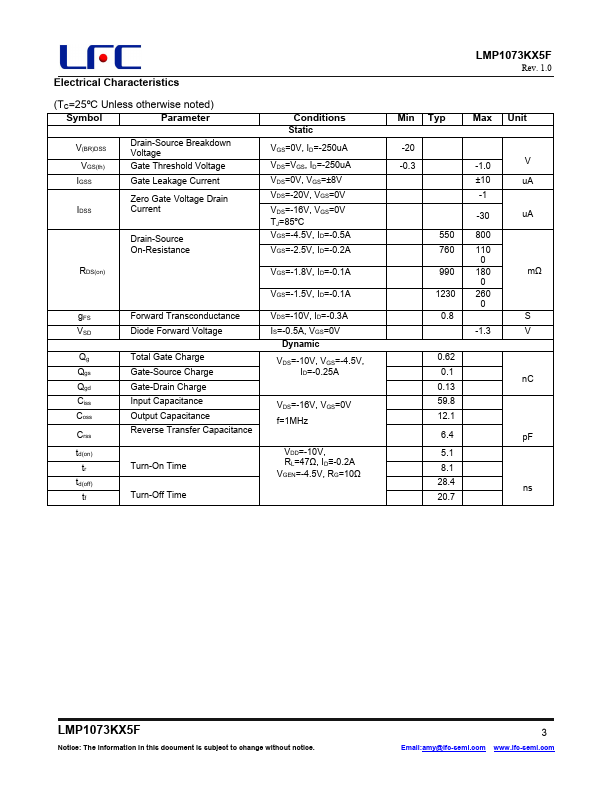

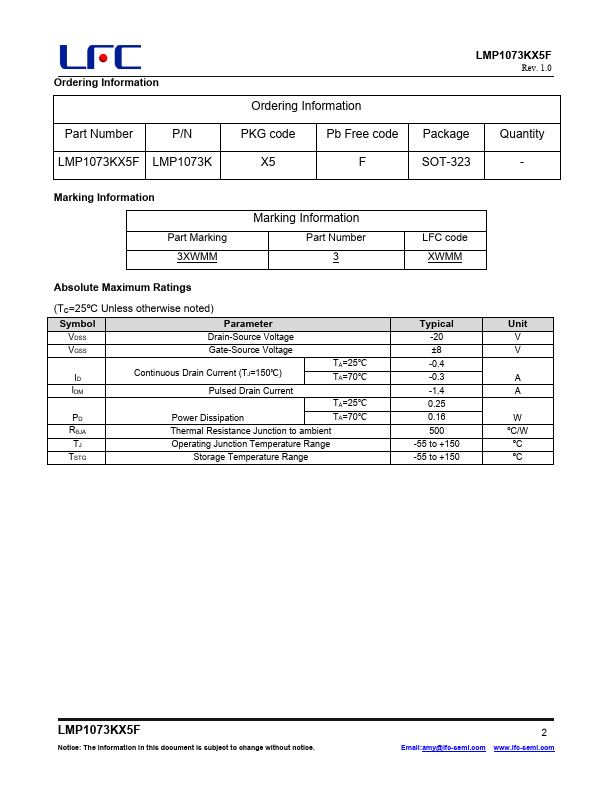

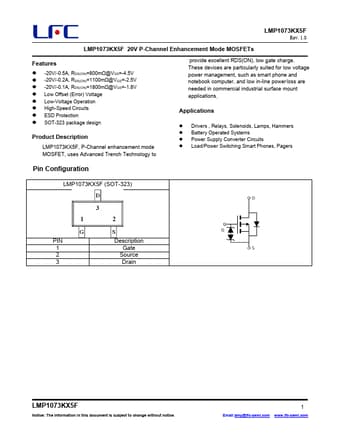

LMP1073KX5F Datasheet Preview — Preview of LMP1073KX5F PDF

Datasheet Specifications

Part number: LMP1073KX5F
Manufacturer: LFC semi
File Size: 639.66 KB
Datasheet: LMP1073KX5F-LFCsemi.pdf
Description: 20V P-Channel Enhancement Mode MOSFET

Features

* -20V/-0.5A, RDS(ON)=800mΩ@VGS=-4.5V
* -20V/-0.2A, RDS(ON)=1100mΩ@VGS=-2.5V
* -20V/-0.1A, RDS(ON)=1800mΩ@VGS=-1.8V
* Low Offset (Error) Voltage
* Low-Voltage Operation
* High-Speed Circuits
* ESD Protection

Applications

* Applications
* Drivers , Relays, Solenoids, Lamps, Hammers
* Battery Operated Systems
* Power Supply Converter Circuits
