LMP2145X5F - 20V P-Channel Enhancement MOSFET

📥 Download Datasheet

LMP2145X5F Datasheet Preview — Preview of LMP2145X5F PDF

Datasheet Details

Part number: LMP2145X5F
Manufacturer: LFC semi
File Size: 672.10 KB
Datasheet: LMP2145X5F-LFCsemi.pdf
Description: 20V P-Channel Enhancement MOSFET

LMP2145X5F Product details

Description

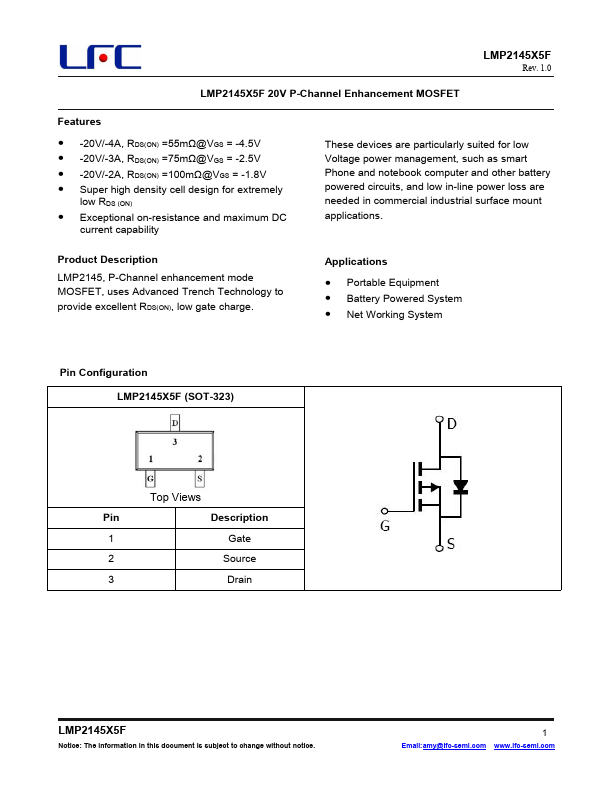

LMP2145, P-Channel enhancement mode MOSFET, uses Advanced Trench Technology to provide excellent RDS(ON), low gate charge. Portable Equipment Battery Powered System Net Working System Pin Configuration LMP2145X5F (SOT-323) Top Views Pin Description 1 Gate 2 Source 3 Drain LMP2145X5F Notice: The information in this document is subject to change without notice.1 Email:amy@lfc-semi.com www.lfc-semi.com Ordering Information Part Number LMP2145X5F P/N L

Features

-20V/-4A, RDS(ON) =55mΩ@VGS = -4.5V.
-20V/-3A, RDS(ON) =75mΩ@VGS = -2.5V.
-20V/-2A, RDS(ON) =100mΩ@VGS = -1.8V.
Super high density cell design for extremely low RDS (ON).
Exceptional on-resistance and maximum DC current capability These devices are particularly suited for low Voltage power management, such as smart Phone and notebook computer and other battery powered circuits, and low in-line power loss are needed in commercial industrial surface mount.
