LMP2165X5F - 20V P-Channel Enhancement MOSFET

LMP2165X5F Description

LMP2165X5F Rev.1.0 LMP2165X5F 20V P-Channel Enhancement MOSFET .
LMP2165, P-Channel enhancement mode MOSFET, uses Advanced Trench Technology to provide excellent RDS(ON), low gate charge. Portabl.

LMP2165X5F Features

* -20V/-1.5A, RDS(ON) =70mΩ@VGS = -4.5V
* -20V/-1.2A, RDS(ON) =90mΩ@VGS = -2.5V
* -20V/-0.8A, RDS(ON) =130mΩ@VGS = -1.8V
* Super high density cell design for extremely low RDS (ON)
* Exceptional on-resistance and maximum DC current capability These devices are particularly suite

📥 Download Datasheet

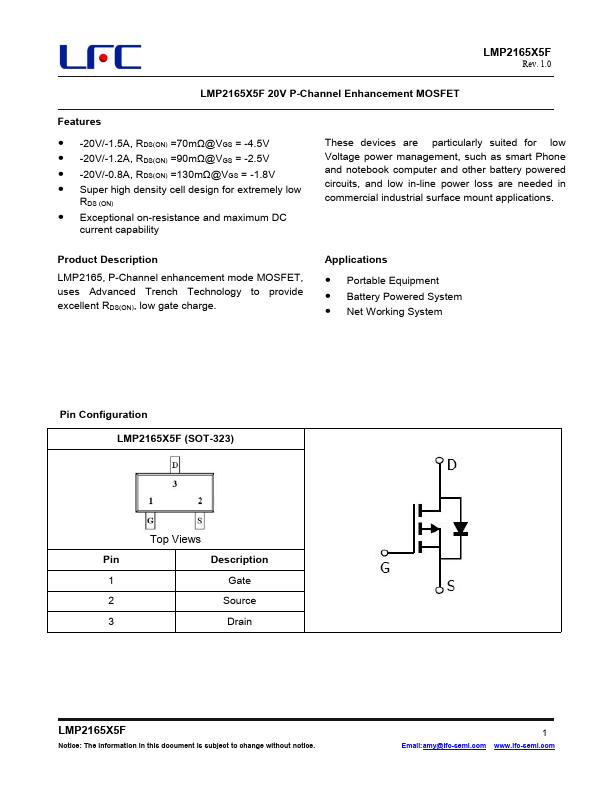

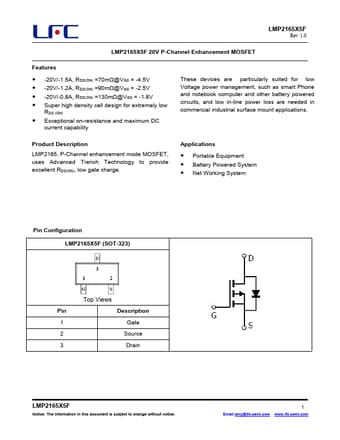

Preview of LMP2165X5F PDF

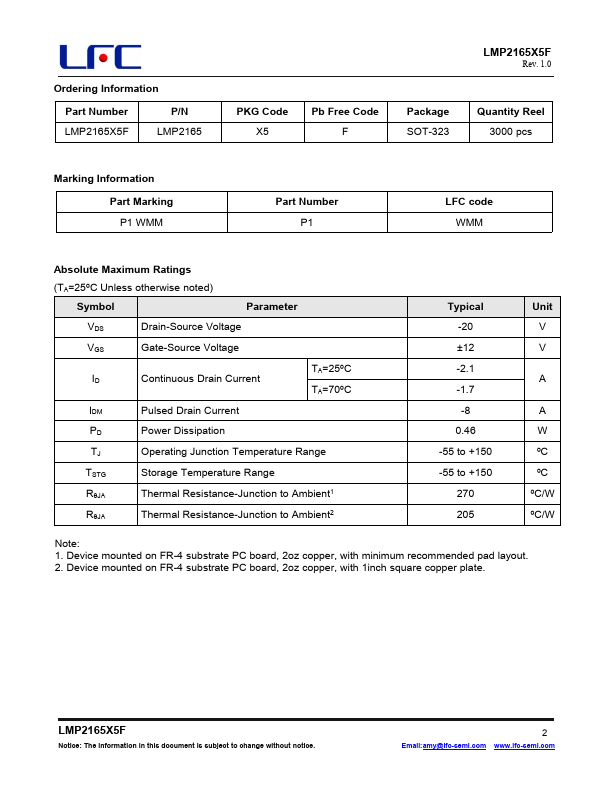

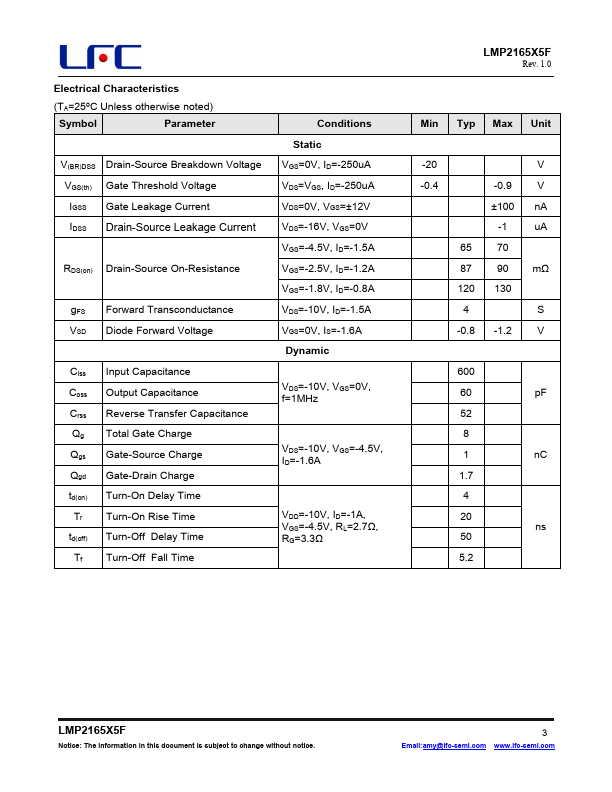

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LMP2165X5F
Manufacturer
LFC semi
File Size
748.53 KB
Datasheet
LMP2165X5F-LFCsemi.pdf
Description
20V P-Channel Enhancement MOSFET
