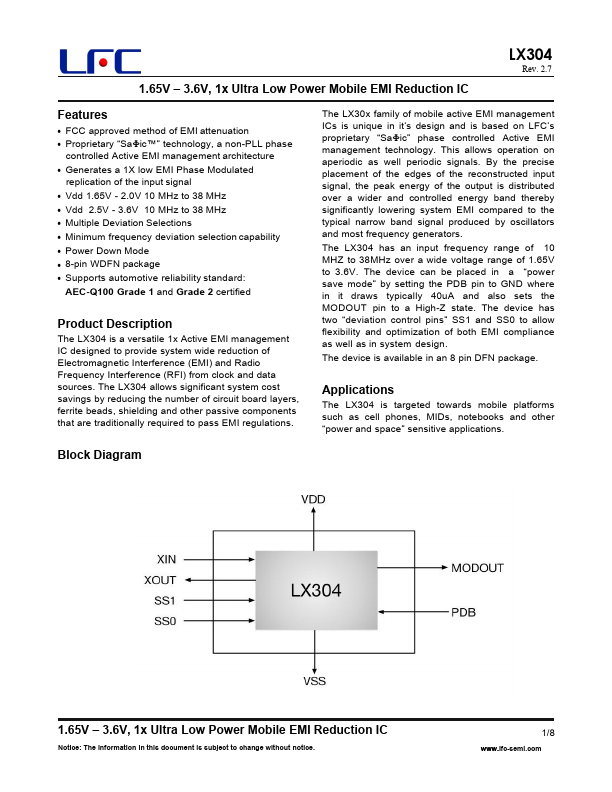

Description
1.65V * 3.6V, 1x Ultra Low Power Mobile EMI Reduction IC LX304 Rev.2.7 .
The LX304 is a versatile 1x Active EMI management IC designed to provide system wide reduction of Electromagnetic Interference (EMI) and Radio Frequen.
Features
* FCC approved method of EMI attenuation
* Proprietary “SaΦic™” technology, a non-PLL phase
controlled Active EMI management architecture
* Generates a 1X low EMI Phase Modulated
replication of the input signal
* Vdd 1.65V - 2.0V 10 MHz to 38 MHz
* Vdd 2.5V - 3.6V 10 MHz to 38 MH
Applications
* The LX304 is targeted towards mobile platforms such as cell phones, MIDs, notebooks and other “power and space” sensitive applications. Block Diagram
1.65V
* 3.6V, 1x Ultra Low Power Mobile EMI Reduction IC
Notice: The information in this document is subject to change without notice. 1/8
