LX304E, LX304 - 1x Ultra Low Power Mobile EMI Reduction

Name: LX304E
SKU: LX304E-1581673

📥 Download Datasheet

LX304E Datasheet Preview — This datasheet PDF includes multiple part numbers: LX304E, LX304. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	LX304E, LX304
Manufacturer	LFC semi
File Size	1.48 MB
Description	1x Ultra Low Power Mobile EMI Reduction
Datasheet	LX304-LFCsemi.pdf
Note	This datasheet PDF includes multiple part numbers: LX304E, LX304. Please refer to the document for exact specifications by model.

LX304E Product details

Description

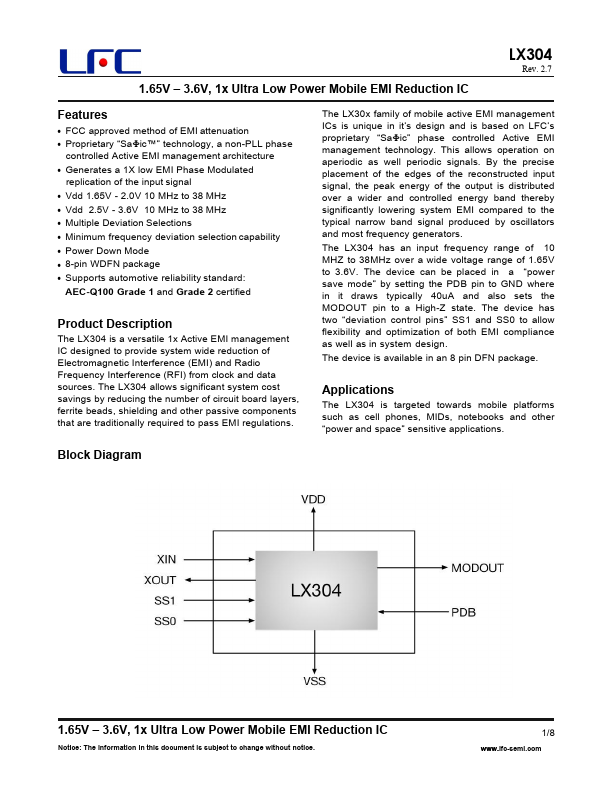

The LX304 is a versatile 1x Active EMI management IC designed to provide system wide reduction of Electromagnetic Interference (EMI) and Radio Frequency Interference (RFI) from clock and data sources.

Features

FCC approved method of EMI attenuation.
Proprietary “SaΦic™” technology, a non-PLL phase controlled Active EMI management architecture.
Generates a 1X low EMI Phase Modulated replication of the input signal.
Vdd 1.65V - 2.0V 10 MHz to 38 MHz.
Vdd 2.5V - 3.6V 10 MHz to 38 MHz.
Multiple Deviation Selections.
Minimum frequency deviation selection capability.
Power Down Mode.
8-pin WDFN package.
Supports automotive reliability standard: AEC-Q100 Gra.
