LX308 - 1x Micro Deviation EMI Reduction IC

Name: LX308
SKU: LX308-1583443

📥 Download Datasheet

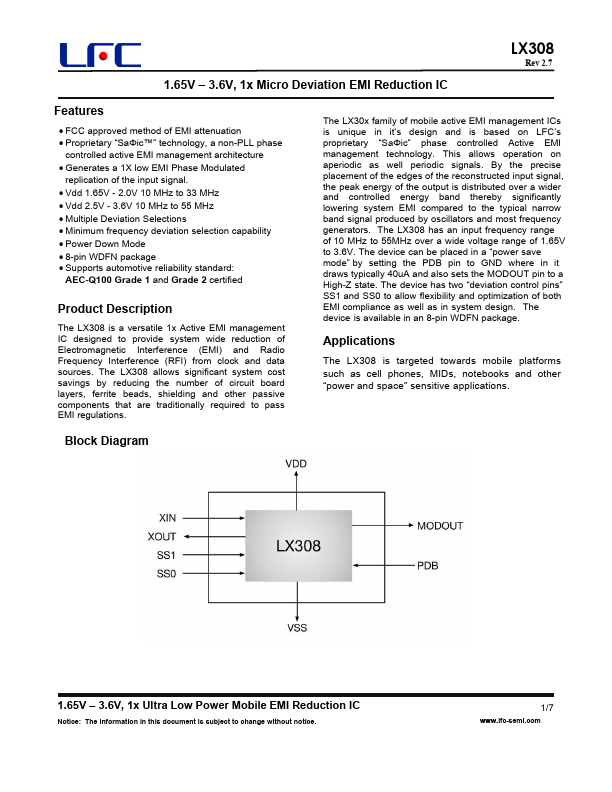

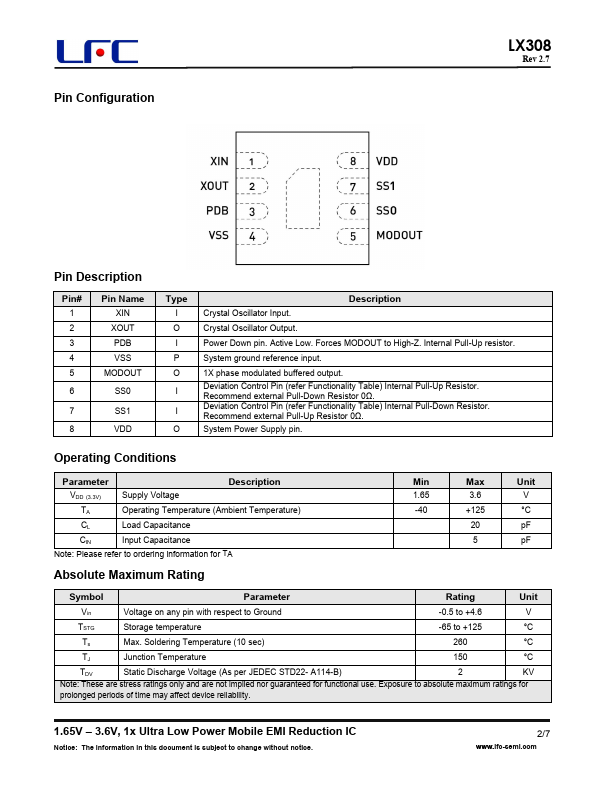

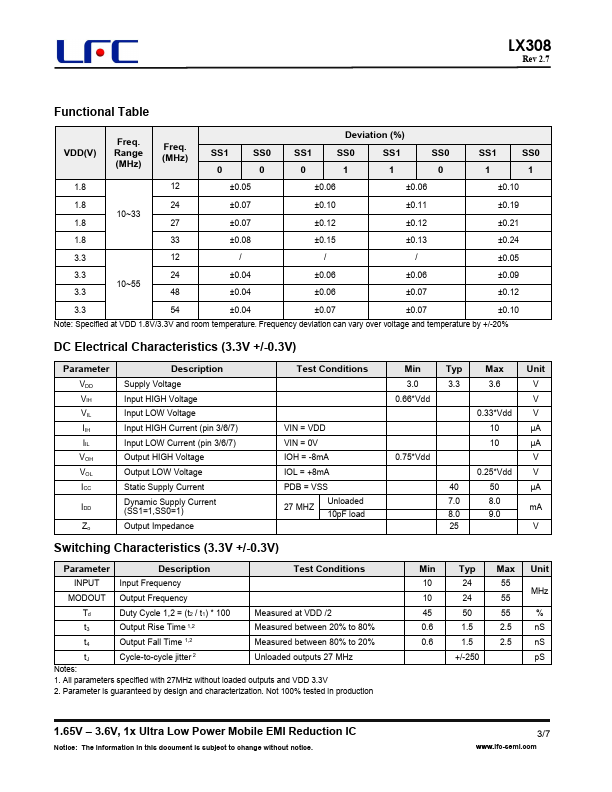

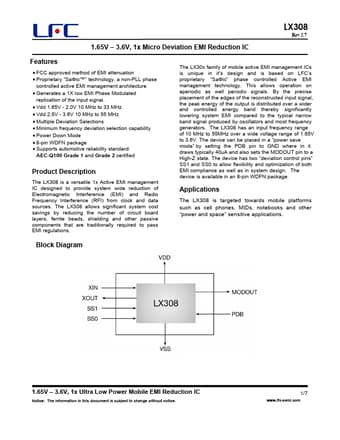

LX308 Datasheet Preview — Preview of LX308 PDF

Datasheet Details

Part number	LX308
Manufacturer	LFC semi
File Size	1.17 MB
Description	1x Micro Deviation EMI Reduction IC
Datasheet	LX308-LFCsemi.pdf

LX308 Product details

Description

The LX308 is a versatile 1x Active EMI management IC designed to provide system wide reduction of Electromagnetic Interference (EMI) and Radio Frequency Interference (RFI) from clock and data sources.

Features

FCC approved method of EMI attenuation.
Proprietary “SaΦic™” technology, a non-PLL phase controlled active EMI management architecture.
Generates a 1X low EMI Phase Modulated replication of the input signal.
Vdd 1.65V - 2.0V 10 MHz to 33 MHz.
Vdd 2.5V - 3.6V 10 MHz to 55 MHz.
Multiple Deviation Selections.
Minimum frequency deviation selection capability.
Power Down Mode.
8-pin WDFN package.
Supports auto.
